Customized High Pressure Large Diameter Hydraulic Cylinder Barrel for 2500 Tons Forging Press Machine

1.Production procedure: Forging+ rough machining+heat treatment+final machining+inspection+package

2.Application: all kinds of heavy duty hydraulic cylinders for press machines

3.Payment type ：50% after signing the contract, and 50% before shipment
4.Payment terms：FOB/EXW/FCA/CIF，etc

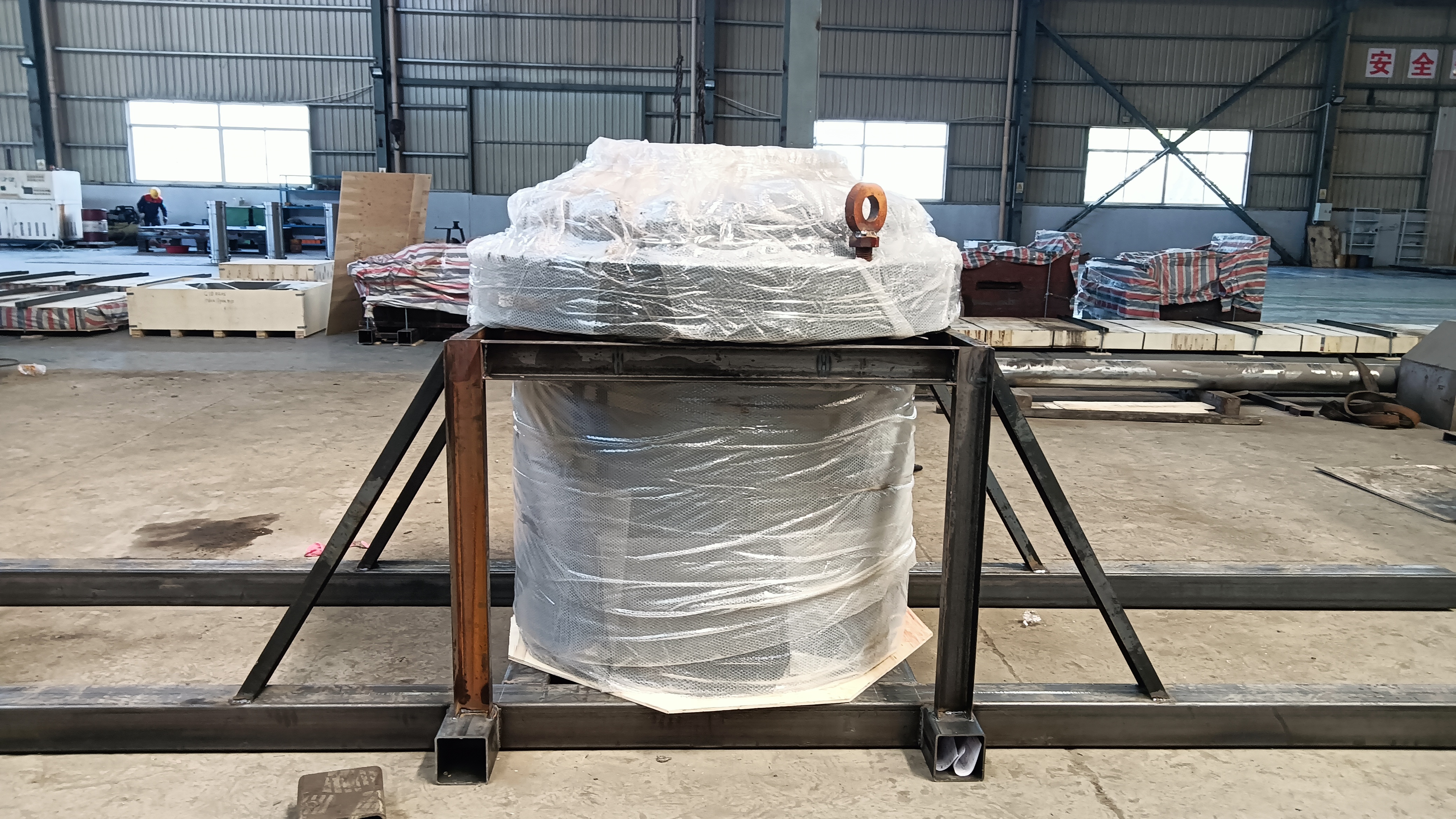

5.Package:：Steel pallet
6.MOQ: 1 pcs
7.Service: customized
8.Quality Warranty Certificate: chemical composition and mechanical properties test certificates

9.Certificate: CE,ISO9001-2015;ISO14001-2015;ISO45001-2018
10.How can we guarantee quality?
We have complete production equipments. All processing procedures are completed in our factory with strict quality control throughout the entire process.

Availability:

Quantity:



Inquire Add to Basket

Model:

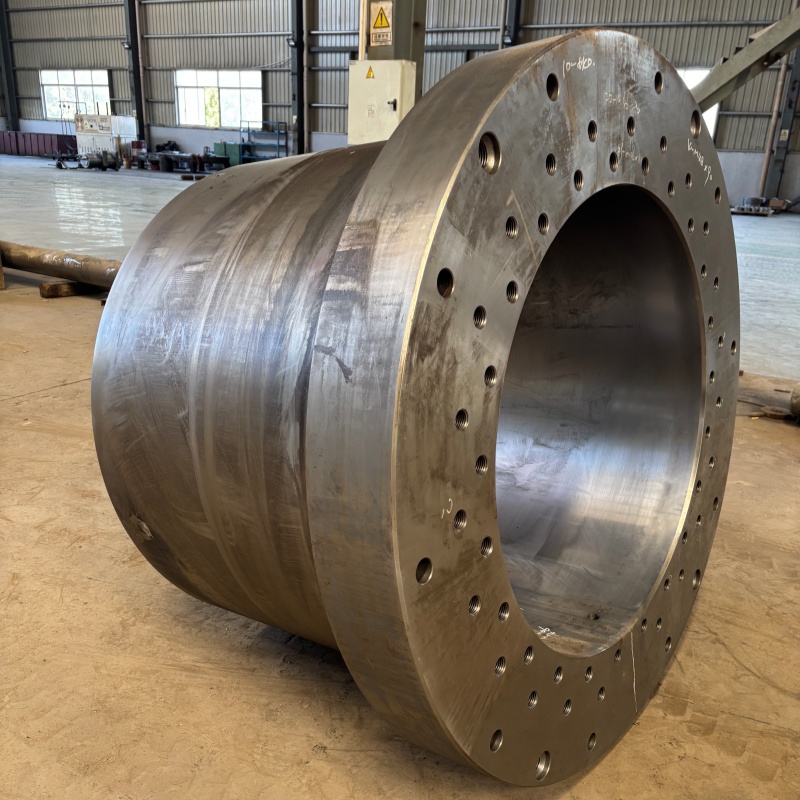

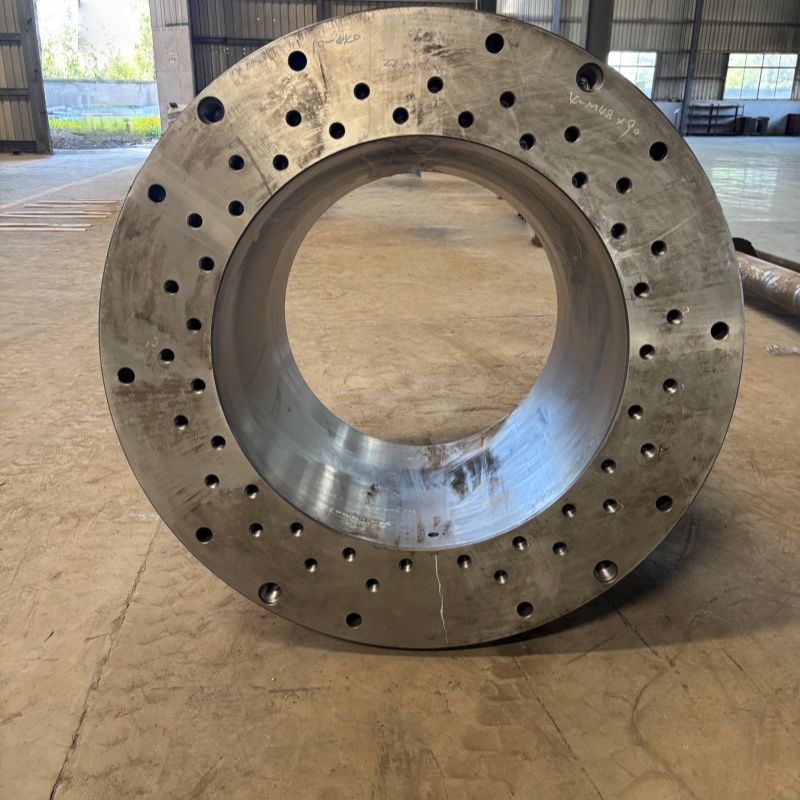

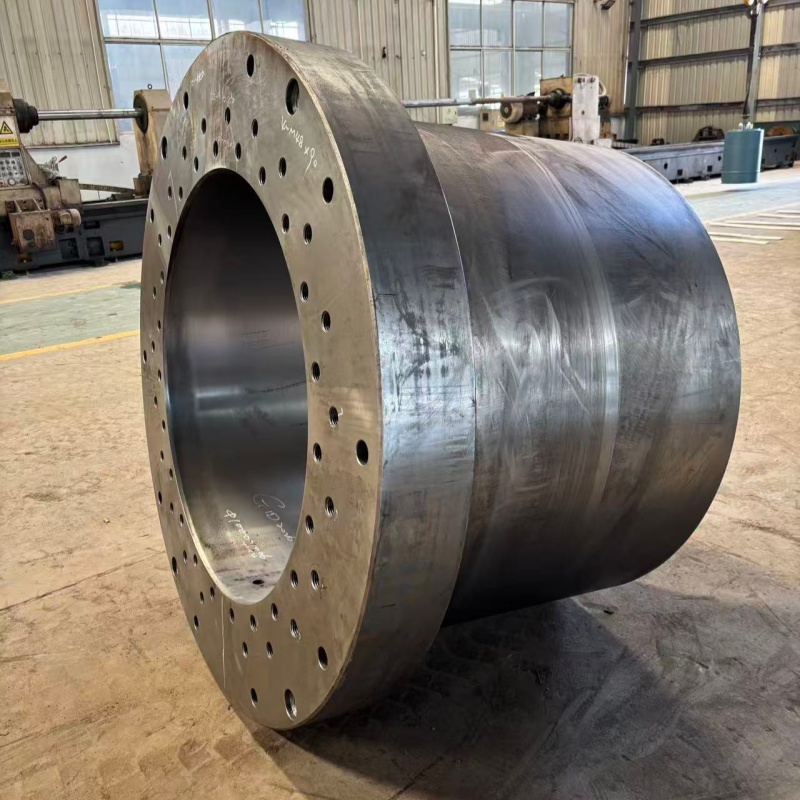

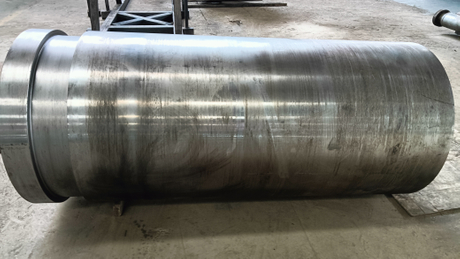

Forging hydraulic cylinder barrel φ1550*φ1000*1040mm
Brand:
ETERNAL

Product Description

Detailed Paremeter

1.Cylinder barrel material:	Forging C45
2.Cylinder barrel size:	φ1550φ10001040mm
3.Cylinder barrel weight:	5200kg
4.Cylinder barrel heat treatment:	Normalizing
5.Hydraulic cylinder max work pressure:	31.5MPA
6.Hydraulic cylinder max thrust:	2500 tons
7.Carry out 100% pressure testing before shippment.

Application

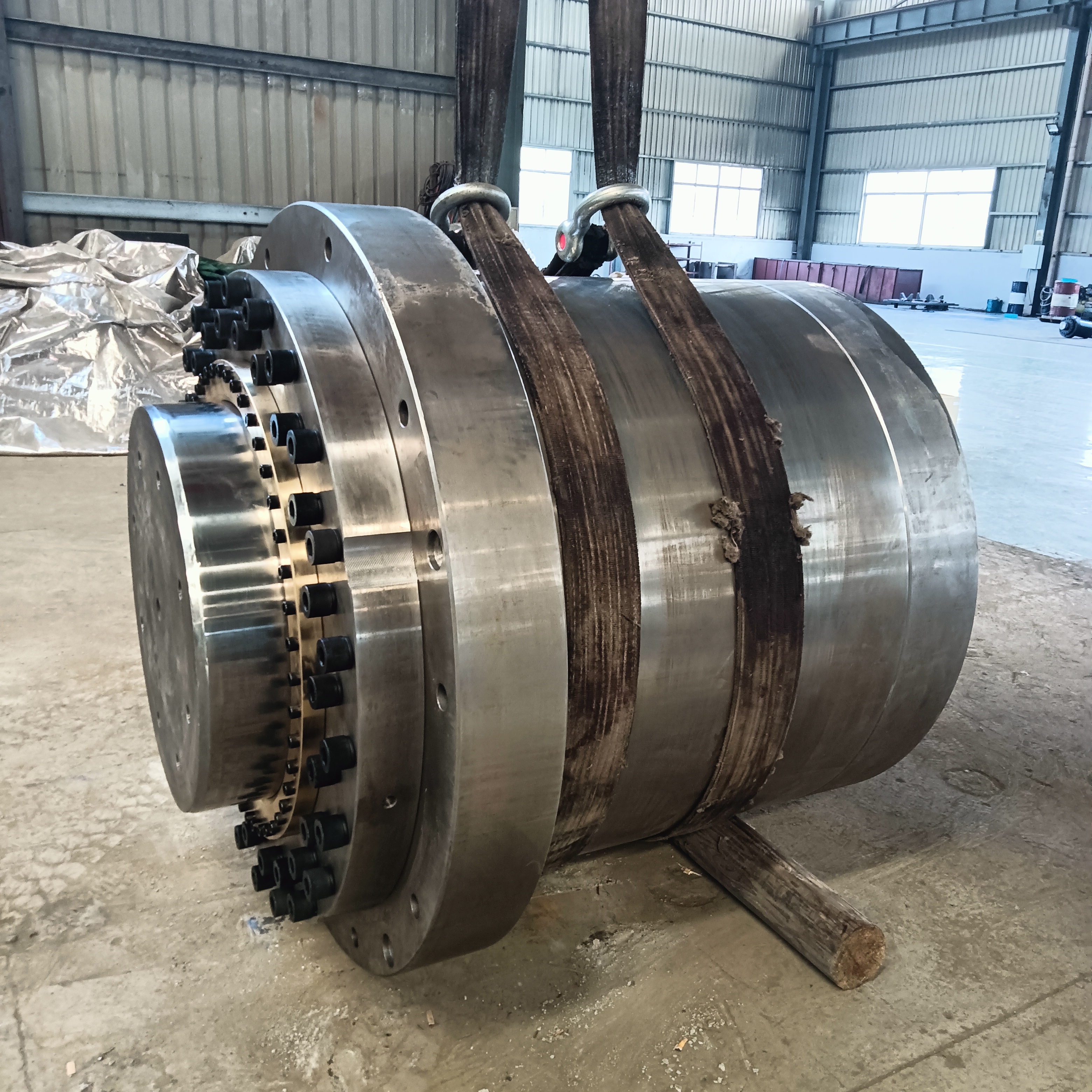

The hydraulic cylinder barrel is applicable to heavy-duty hydraulic cylinders for forging press machines.

Product Procedure

The mainstream manufacturing process for large forging press cylinder body adopts the full workflow: steel ingot → forging → heat treatment → rough machining → (welding) → finish machining → surface treatment → pressure testing and flaw detection.

The core technologies include forging, deep hole honing, and high-pressure sealing pressure testing, which ensure high strength, high precision and high reliability of the product.

Key Technical Points

Forging ratio ≥ 3 to ensure continuous flow lines and dense microstructure.

Precise temperature control in heat treatment to prevent quenching cracking and temper brittleness.

Honing is the core of precision, directly affecting sealing performance and service life.

Welding quality determines operational reliability; thick-wall welding shall avoid cracks and deformation.

Quality Inspection

Non-destructive Testing (NDT):

Internal: Ultrasonic Testing (UT), in accordance with GB/T 6402, no excessive defects allowed.
Surface: Magnetic Particle Testing (MT) / Penetrant Testing (PT), free of cracks and laps.

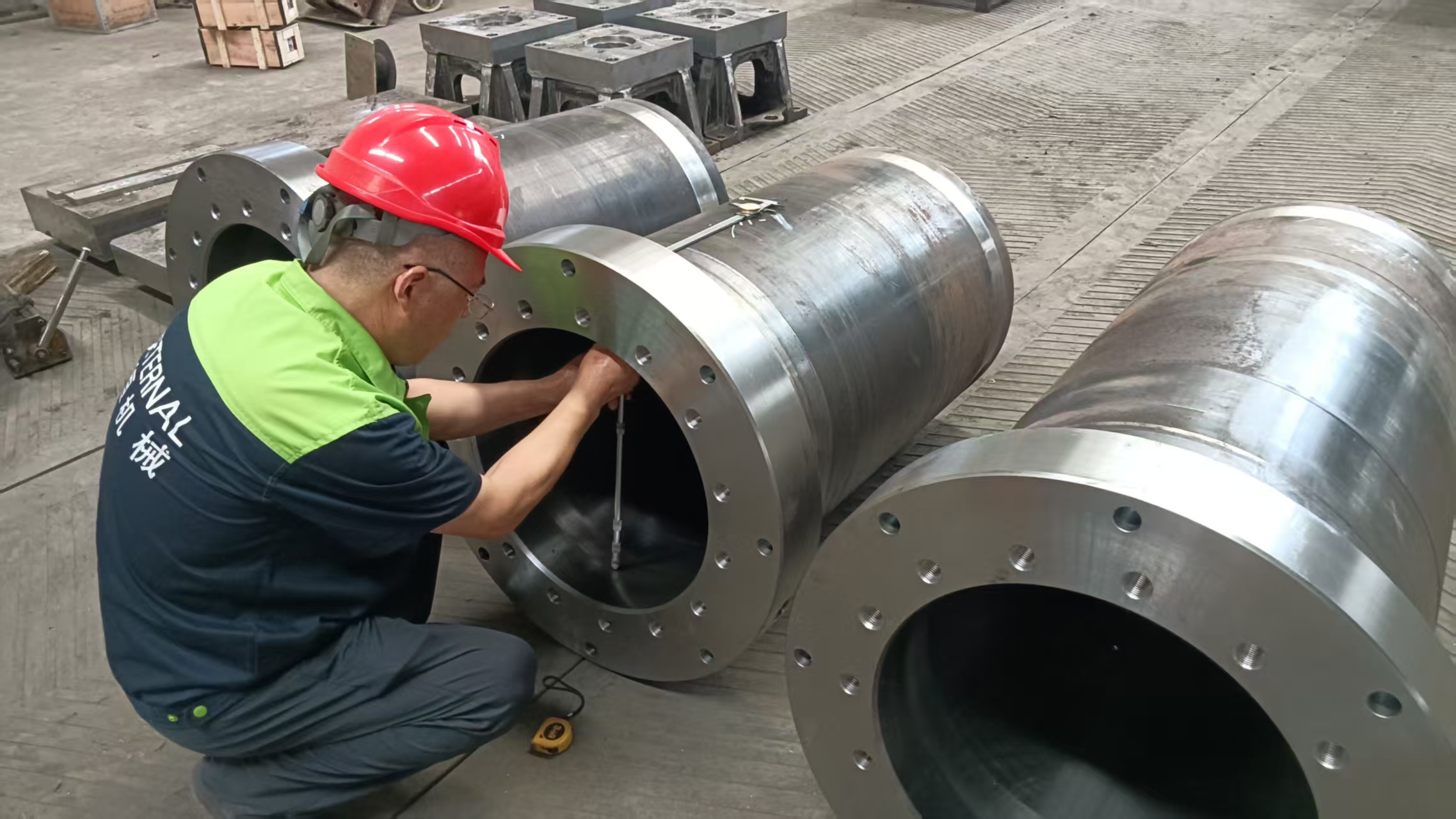

hydraulic cylinder barrel dimensional inspestion from ETERNAL.jpg

Feature

1.The operating conditions are harsh, with exposure to ultra-high pressure, heavy impact and alternating loads, requiring long-term continuous operation and stringent standards for fatigue resistance and leakage prevention.

2.It is manufactured from high-strength alloy steel via integral forging or forge-welded construction, featuring dense microstructure and excellent mechanical properties.

3.With large overall dimensions, heavy wall thickness and self-weight, it belongs to the category of long deep cylindrical thick-walled parts, demanding high structural rigidity.

4.It requires high machining precision, with strict tolerances of form and position as well as stringent surface finish requirements for inner bores and sealing surfaces.

5.The manufacturing process is sophisticated, involving forging, quenching and tempering, precision machining, non-destructive testing and high-pressure hydrostatic testing, with extremely high requirements for safety reliability and service life.
