Have you ever wondered how metal sheets stay perfectly flat during rolling? The secret lies in the backup roll. Backup rolls support slender work rolls, preventing bending and ensuring quality. In this post, you’ll learn what backup rolls are, why they matter, and how they keep rolling mills running smoothly.
Backup rolls play a crucial role in the rolling mill process by supporting and stabilizing the work rolls. Since work rolls are relatively slender and directly contact the metal being rolled, they are prone to deflection and deformation under heavy loads. Backup rolls are positioned behind the work rolls to provide the necessary rigidity, preventing bending and maintaining consistent pressure on the metal sheet. This support helps ensure uniform thickness and quality in the final product.

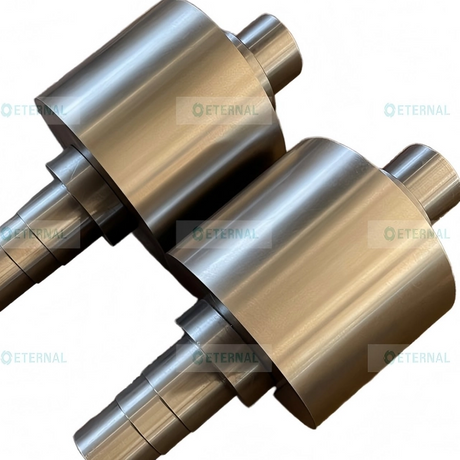

Backup rolls are typically made from high-grade forged steel or composite cast steel, each with distinct advantages. Forged steel backup rolls offer uniform material properties, superior wear resistance, and enhanced peeling resistance. They also provide a deeper hardened layer, which is essential for enduring the intense pressures of metal rolling. Composite cast steel backup rolls, while more economical, may have less uniformity in hardness and wear resistance.The choice of material directly affects the backup roll's durability and performance. High-quality steel with good toughness and hardness ensures the roll can withstand the repeated stresses during rolling without cracking or excessive wear.
Several quality characteristics define an effective backup roll:
Hardness: A high surface hardness helps resist wear and deformation during rolling.
Wear Resistance: Prevents the roll from developing a concave shape due to uneven wear, which can negatively affect product quality.
Toughness: Essential for absorbing shocks and preventing fractures, especially in the roll neck and body.
Peeling Resistance: Prevents surface layers from flaking off under stress.
Balancing these characteristics ensures the backup roll performs reliably over long service intervals.
| Feature | Forged Steel Backup Rolls | Composite Cast Steel Backup Rolls |
| Material Uniformity | High | Moderate |
| Wear Resistance | Superior | Good |
| Peeling Resistance | Excellent | Moderate |
| Production Complexity | High (complex forging and heat treatment) | Lower (casting process) |
| Cost | Higher | Lower |
| Service Life | Longer | Shorter |
Forged steel backup rolls are preferred in high-speed and high-precision rolling mills due to their superior mechanical properties.
Backup rolls vary widely in size and design depending on the rolling mill's application. Typical dimensions range from small rolls with diameters around 500 mm to large rolls exceeding 1800 mm. Lengths can extend up to 7000 mm, and weights may reach 80 tons or more. The type of backup roll used depends on factors such as rolling speed, metal thickness, and mill configuration.
By providing a rigid support to the work rolls, backup rolls minimize roll bending and deflection. This stability ensures the metal sheet maintains a consistent thickness and smooth surface finish. Without backup rolls, work rolls would deform under load, leading to uneven rolling pressure, surface defects, and dimensional inaccuracies.
Backup rolls find applications in:
Metal Rolling Mills: Supporting work rolls in hot and cold rolling processes for steel, aluminum, and copper sheets.
Tension Levelers and Levelers: Assisting in flattening metal strips to improve surface quality.
Heavy Fabrication: Ensuring precision in rolling large metal plates for automotive, aerospace, and construction industries.
Paper and Plastic Processing: Providing structural support in rolling processes requiring consistent pressure and shape control.
Their versatility across industries highlights the backup roll's essential function in maintaining rolling precision and efficiency.
Backup rolls must endure demanding working conditions in rolling mills and metal rolling processes. Their performance directly impacts product quality and equipment longevity. Understanding these requirements helps optimize backup roll design, maintenance, and application.
Backup rolls support the slender work rolls to prevent bending and deformation under heavy loads. They must maintain high stiffness and rigidity throughout the rolling process. This ensures the work rolls apply uniform pressure on the metal sheet, preserving consistent thickness and surface quality. Insufficient stiffness leads to work roll deflection, causing uneven rolling and defects.
Backup rolls continuously contact work rolls under high stress, making them susceptible to contact fatigue. Repeated loading can cause work hardening and micro-cracks beneath the hardened surface layer. Over time, these micro-cracks may propagate, leading to surface peeling or spalling. Therefore, backup rolls require excellent contact fatigue strength and crack growth resistance to prevent premature failure.
During operation, backup rolls tend to develop a concave wear pattern in the middle of the roll barrel. This uneven wear increases contact stress at the roll ends, accelerating peeling and reducing roll life. High wear resistance delays this concave shaping, maintaining the roll’s cylindrical shape and ensuring consistent metal strip profiles. Effective wear resistance also reduces maintenance frequency and downtime.
The roll neck experiences alternating bending stresses for extended periods. It must have sufficient yield strength, toughness, and fracture resistance to avoid cracks or breakage. These mechanical properties safeguard the roll’s structural integrity, ensuring safe operation and minimizing costly roll replacements.
Backup rolls must balance high wear resistance with mechanical strength and toughness. Excessive hardness may improve wear resistance but reduce toughness, increasing brittleness. Conversely, prioritizing toughness alone can lead to faster wear. The ideal backup roll design combines these properties to withstand harsh rolling conditions while maintaining durability.
The production of backup rolls is a complex process that demands precision and high-quality materials to ensure durability and performance in metal rolling applications. Understanding the manufacturing stages and the challenges involved helps appreciate the engineering behind these critical components.
Backup rolls usually begin as high-grade steel ingots, often produced through electric furnace smelting followed by ladle refining. This ensures the steel's chemical composition meets strict standards for hardness, toughness, and wear resistance. Vacuum ingot casting is commonly used to reduce impurities and improve uniformity, which is vital for the roll's structural integrity.
Forging shapes the steel into the rough form of the backup roll, refining its grain structure and enhancing mechanical properties. Large backup rolls require precise forging to avoid internal defects. Post-forging heat treatments, including quenching and tempering, develop a hardened surface layer while maintaining core toughness. This balance is essential to resist wear and prevent cracking during operation.
After heat treatment, the roll undergoes rough and semi-finishing machining to achieve near-final dimensions. Ultrasonic flaw detection is performed multiple times during manufacturing to identify internal cracks or inclusions that could compromise roll life. Final machining ensures tight tolerances on diameter and surface finish, critical for maintaining concentricity and minimizing runout.
The finishing stage includes grinding and polishing the roll surface to achieve the required hardness uniformity and smoothness. Comprehensive inspections verify dimensional accuracy, surface hardness, and absence of defects. Painting or coating may be applied to protect the roll during storage and transport.
Producing large forged steel backup rolls presents several challenges:
Material Uniformity: Achieving consistent hardness and toughness throughout the roll body is difficult due to size.
Heat Treatment Control: Large rolls require controlled heat treatment to avoid residual stresses that can lead to cracking.
Machining Precision: Maintaining tight tolerances on massive components demands advanced equipment and skilled operators.
Flaw Detection: Detecting subsurface defects in thick steel sections requires sophisticated ultrasonic technology.
Because of these complexities, only a few specialized manufacturers can produce high-quality large forged steel backup rolls.
Recent innovations have improved backup roll manufacturing:
Computer-Controlled Forging: Enhances precision and repeatability in shaping rolls.
Advanced Heat Treatment: Techniques like induction hardening produce deeper hardened layers with minimal distortion.
Automated Ultrasonic Testing: Increases flaw detection accuracy and reduces inspection time.
CNC Machining: Ensures superior dimensional control and surface finish.
Material Science Developments: New steel alloys and composite structures improve wear resistance and toughness.
These advancements lead to longer-lasting backup rolls that maintain rolling mill precision and reduce downtime.
Backup rolls play a pivotal role in ensuring the precision of metal rolling processes. Their main function is to support the work rolls, which directly contact the metal strip. By providing this support, backup rolls help maintain consistent thickness and surface finish, critical factors in high-quality metal products.
The work rolls are relatively slender and prone to bending under the heavy loads of rolling. Backup rolls, positioned behind the work rolls, counteract this bending by adding stiffness and rigidity. This support prevents the work rolls from deflecting, ensuring uniform pressure distribution across the metal sheet. As a result, the metal maintains consistent thickness and a smooth surface finish throughout the rolling process.
The precision of backup rolls themselves directly affects the rolling outcome. Concentricity refers to how well the roll’s surface aligns with its central axis. Runout is the measure of deviation from a perfect circular rotation. Poor concentricity or excessive runout in backup rolls causes vibrations and uneven pressure during rolling. This leads to surface defects such as vibration lines, scratches, and inconsistent thickness in the metal strip.For example, in a rolling mill backup roll, the circular runout should be controlled within 0.01 mm. Exceeding this tolerance can cause non-uniform deformation and reduce the quality of the final product. Maintaining strict manufacturing and assembly tolerances for backup rolls is essential to avoid these issues.
When backup rolls degrade or are poorly maintained, several problems arise:
Uneven wear: Leads to concave shaping of the roll barrel, increasing stress at roll ends.
Excessive vibration: Causes surface defects and reduces rolling accuracy.
Increased runout: Results in inconsistent metal thickness and poor surface finish.
Premature peeling or spalling: Due to contact fatigue, lowering roll life and increasing downtime.
These issues not only compromise product quality but also increase maintenance costs and reduce rolling mill efficiency.
Industries such as automotive manufacturing and heavy fabrication demand the highest precision from rolled metal products. Backup rolls ensure that the metal sheets meet strict thickness tolerances and surface finish standards required for safety and performance. In automotive applications, even minor deviations can affect part fit and structural integrity.Similarly, heavy fabrication requires uniform metal plates for reliable welding and assembly. Backup rolls contribute to this by stabilizing work rolls and preventing defects. Investing in high-quality rolling mill backup rolls with excellent concentricity and minimal runout is therefore crucial for these industries.
Backup rolls are essential in metal rolling, but they face tough conditions that cause wear and degradation. Understanding typical wear patterns and maintenance practices helps extend their service life and maintain rolling mill efficiency.
Backup rolls often develop a concave wear pattern in the middle of the roll barrel. This happens because the central area carries the highest load during rolling, leading to accelerated wear. Over time, this concavity increases contact stress at the roll ends, causing peeling or spalling of the surface layer. Other common wear issues include:
Surface fatigue cracks: Caused by repeated rolling contact stress.
Peeling or flaking: Resulting from micro-cracks growing under the hardened surface.
Neck cracks: Due to alternating bending stresses on the roll neck.
Corrosion: From exposure to moisture or rolling mill lubricants.
These wear patterns reduce backup roll effectiveness and can lead to uneven metal thickness or surface defects.
Proper maintenance is key to maximizing backup roll durability. Best practices include:
Regular inspections: Check for surface wear, cracks, and peeling.
Monitoring wear patterns: Use profilometers or laser scanning to detect concavity early.
Lubrication management: Maintain proper lubrication to reduce friction and corrosion.
Balancing and alignment: Ensure backup rolls are correctly aligned to avoid uneven wear.
Scheduled roll turning or grinding: Restore the roll surface profile and remove minor defects.
Surface coating application: Use advanced coatings to improve wear resistance.
Implementing these practices reduces downtime and prevents unexpected roll failures.
Replacing backup rolls requires strict safety measures due to their heavy weight and critical role:
Power off the rolling mill: Ensure all machinery is de-energized before roll removal.
Use proper lifting equipment: Employ cranes or hoists designed for heavy rolls.
Clear the work area: Keep personnel away during roll handling.
Follow manufacturer guidelines: Adhere to recommended procedures for disassembly and installation.
Inspect replacement rolls: Verify quality and dimensional accuracy before installation.
Following these protocols prevents accidents and equipment damage.
Knowing when to replace backup rolls avoids production losses. Key indicators include:
Excessive concave wear: When the roll barrel’s concavity exceeds acceptable limits.
Deep surface cracks or peeling: Visible signs of fatigue damage.
Neck cracks or deformation: Compromising roll structural integrity.
Increased vibration during rolling: Indicating roll imbalance or damage.
Reduced roll hardness: From wear or heat treatment degradation.
Timely replacement maintains product quality and rolling mill safety.
Backup rolls can often be repaired to extend life:
Grinding and polishing: Removes surface defects and restores profile.
Welding and build-up: Fills deep wear areas before re-machining.
Heat treatment: Re-hardens the surface after repairs.
Coating application: Adds wear-resistant layers such as chromium or ceramic.
Neck repair or replacement: Addresses cracks or wear in critical areas.
Refurbishing backup rolls is cost-effective compared to full replacement but requires skilled technicians and strict quality control.
Backup rolls continue to evolve, driven by the need for greater durability, precision, and efficiency in metal rolling and heavy machinery. The latest innovations focus on materials, monitoring systems, manufacturing techniques, and environmental considerations to meet the increasing demands of modern rolling mills.
One significant trend is the adoption of smart materials and advanced surface coatings for backup rolls. These materials can adapt to changing conditions, improving wear resistance and reducing surface fatigue. For example, ceramic-based coatings or nano-structured layers enhance hardness and peeling resistance without compromising toughness. Such coatings extend roll life and reduce maintenance frequency by protecting the roll surface from abrasive wear and micro-cracking.Smart alloys with self-healing properties are also being explored. These materials can repair minor surface damage autonomously, lowering downtime and repair costs. The integration of these advanced materials marks a shift from traditional steel rolls to more resilient and intelligent backup rolls.
Digital transformation in rolling mills has introduced real-time monitoring technologies for backup rolls. Sensors embedded in or around the rolls track parameters like temperature, vibration, and wear in real time. Data from these sensors feed into predictive maintenance systems powered by AI and machine learning algorithms.This approach helps detect early signs of backup roll wear or damage, such as concave shaping or micro-crack formation. Operators receive alerts before failures occur, allowing planned maintenance and avoiding unexpected downtime. Real-time monitoring also optimizes roll usage by balancing load distribution and adjusting rolling parameters dynamically.
Manufacturing processes for backup rolls are becoming increasingly precise thanks to advancements in CNC machining, forging, and heat treatment controls. Computer-controlled forging ensures uniform grain structure and mechanical properties throughout the roll body. Advanced heat treatment methods, such as induction hardening, create deeper and more consistent hardened layers while minimizing residual stress.Ultrasonic flaw detection is now more sensitive and automated, ensuring internal defects are caught early. These improvements lead to backup rolls with superior concentricity, minimal runout, and enhanced structural integrity. The result is more consistent rolling performance and longer roll life, especially critical in high-speed and high-precision rolling mills.
Sustainability is influencing backup roll design and production. Manufacturers aim to reduce the environmental footprint by optimizing material usage and energy consumption during forging and heat treatment. Lightweight backup rolls using composite materials are under development to reduce mill energy costs while maintaining strength and stiffness.Moreover, advanced coatings reduce friction and wear, lowering lubrication needs and waste. Longer-lasting backup rolls decrease the frequency of replacements, cutting down material consumption and disposal. These eco-friendly trends align with industry goals for greener manufacturing and operational efficiency.
Backup rolls are vital for supporting work rolls and ensuring metal sheets maintain consistent thickness and quality. Investing in high-quality backup rolls enhances durability, wear resistance, and rolling precision. Future developments focus on smart materials and real-time monitoring to improve performance and reduce downtime. Jiangyin Eternal Heavy Industry Co.,Ltd. offers advanced backup rolls designed to deliver exceptional strength and reliability, helping industries achieve superior rolling efficiency and product excellence.
A: A backup roll is a large roll positioned behind the slender work rolls in a rolling mill. Its primary function is to support and stabilize the work rolls, preventing deflection and ensuring consistent pressure during metal rolling for uniform thickness and quality.
A: The backup roll’s purpose is to provide rigidity and stiffness to the work rolls, minimizing bending and deformation. This support maintains rolling precision, prevents uneven thickness, and reduces surface defects in the rolled metal.
A: Backup rolls are larger and stiffer than work rolls. While work rolls directly contact the metal strip to shape it, backup rolls support the work rolls to prevent bending under heavy loads, ensuring consistent rolling pressure and product quality.
A: Backup rolls are typically made from forged steel or composite cast steel. Forged steel offers superior wear resistance, hardness, and toughness, leading to longer service life and better performance in rolling mills compared to composite cast steel.
A: Wear on backup rolls is monitored by inspecting for concave shaping, surface cracks, and peeling. Regular maintenance includes lubrication, grinding to restore profiles, and timely replacement to prevent defects and extend roll life.
A: High-quality backup rolls enhance rolling precision, reduce work roll deflection, improve metal strip uniformity, and extend roll service life. Their durability lowers maintenance costs and minimizes production downtime.
A: Backup rolls should be replaced when excessive concave wear, deep surface cracks, neck deformation, or increased vibration occur. Timely replacement ensures consistent product quality and prevents costly rolling mill failures.
