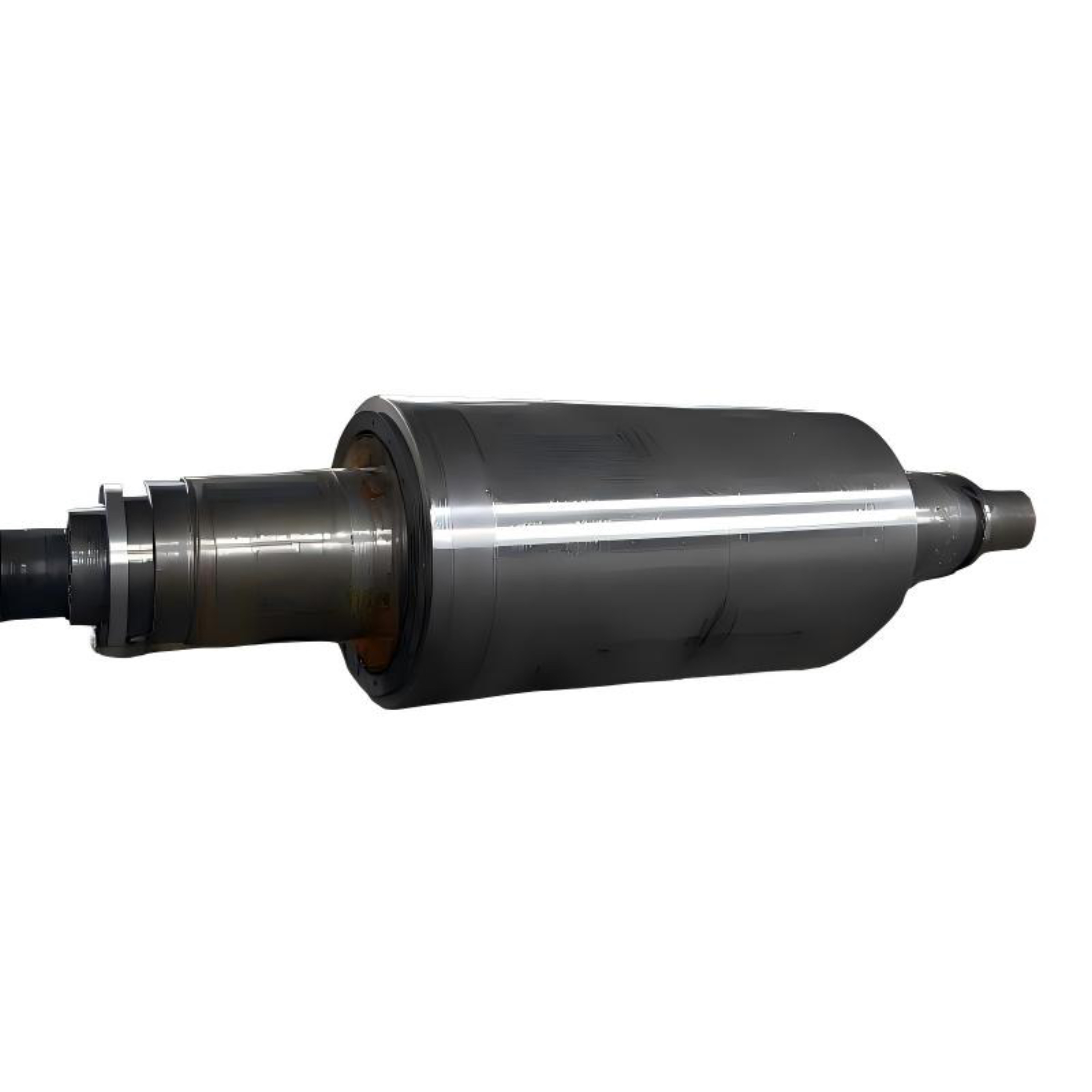

86CrMoV7 Forged Cold Work Roll for Stainless Steel Rolling Mill

Name: 86CrMoV7 Forged Cold Work Roll for Stainless Steel Rolling Mill
Brand: ETERNAL
Rating: 5.0 (77 reviews)

1.86CrMoV7 cold work roll is usually used in cold rolling mills to make stainless steel plate and strips,etc.

2.Besides 86CrMoV7 , other forged steels are also taken into cosideration,sunch as Cr2 series 9Cr2Mo, Cr3 series 9Cr3Mo/MC3/8Cr3MoV, Cr5 series 9Cr5Mo/MC5/8Cr5MoV,etc.

3.After forging, it will undergo spheroidizing annealing to remove inside stress and oil quenching heat treatment to reduce crack risks.
4.Double -frequency quenching for surface heatment to reach a high hardness value and depth layer.

5.Before shipment, we conduct 100% UT/MT quality testing according to testing standards such as EN 10228 series,ASTM A388M/A388、A966/A966M.

6.ETERNAL provides customized service.The diameter is upto 800mm and the length is upto 2500mm.

Availability:

Quantity:



Inquire Add to Basket

Model:
FORGE - Cold Roll Work Roll
Brand:
ETERNAL

Product Description

Production Procedure

Forging ,rough machining,heat treatment: normalizing, quenching and tempering,surface quenching ,final processing

锻造轧辊流程图

What Material is 86CrMoV7 Forged Work Roll Applied to Roll?

Cold rolled carbon steel strips and sheets

Cold rolled stainless steel plates and strips

Silicon steel and electrical steel

Galvanized and tin-coated steel sheets

Cold rolled non-ferrous metal coils such as copper and aluminum

Feature:

1. Choose high strength forging material

2. Forging raw material choose ESR ingot

3. Long time annealing after forgings to remove inside stress

4. Oil quenching heat treatment to reduce crack risks

5. Double -frequency quenching to reach a high hardness value and depth layer

6. Hardness range: HRC55-65

8Cr3MoV forging steel chemical specification :

8Cr3MoV	C	Si	Mn	Cr	Mo	V	P/S
8Cr3MoV	0.78-1.1%	0.4-1.1%	0.2-0.5%	2.8-3.2%	0.2-0.6%	0.05-0.15%	≤0.025%

8Cr3MoV mechanical property :

The core mechanical properties of 8Cr3MoV are characterized by high hardness, high wear resistance, and moderate toughness, with heat treatment process being the key. The quenching temperature is usually 1050-1100 ℃, and the tempering temperature is 180-220 ℃ (low-temperature tempering to maintain hardness) or 450-550 ℃ (medium temperature tempering to improve toughness).

Hardness: HRC 60-64, the hardness can reach HRC 62-65 after quenching, and maintains high hardness after tempering to meet wear resistance requirements.

Strength and toughness: The tensile strength is about 1800-2200MPa, and the impact toughness α k is 15-25 J/cm ², which combines high strength and certain impact resistance.

Wear resistance and red hardness: containing Cr, Mo, V elements to form carbides, excellent wear resistance; Red hardness is moderate, and it can still maintain good hardness in an environment of 250-300 ℃.

Processing performance: After annealing, the hardness is about HB 229-285, which can be used for cutting such as turning and milling. After quenching, it needs to be ground and precision machined.

Mainstream Cold Roll Steel

The mainstream forged materials used for cold rolling backup rolls includes Cr2 series,Cr3 series,Cr5 series，such as 86CrMoV7/ 9Cr2Mo/ 9Cr3Mo/ MC3 / 70Cr3Mo/ 70Cr3NiMo/ MC5/ 8Cr5MoV/ 9Cr5MoV/ 9Cr5Mo ,etc.

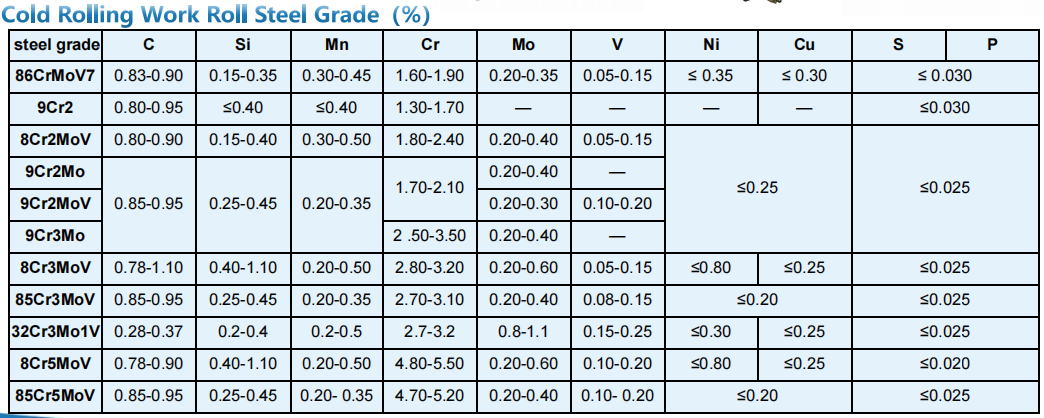

forged cold roll work roll steel grade
