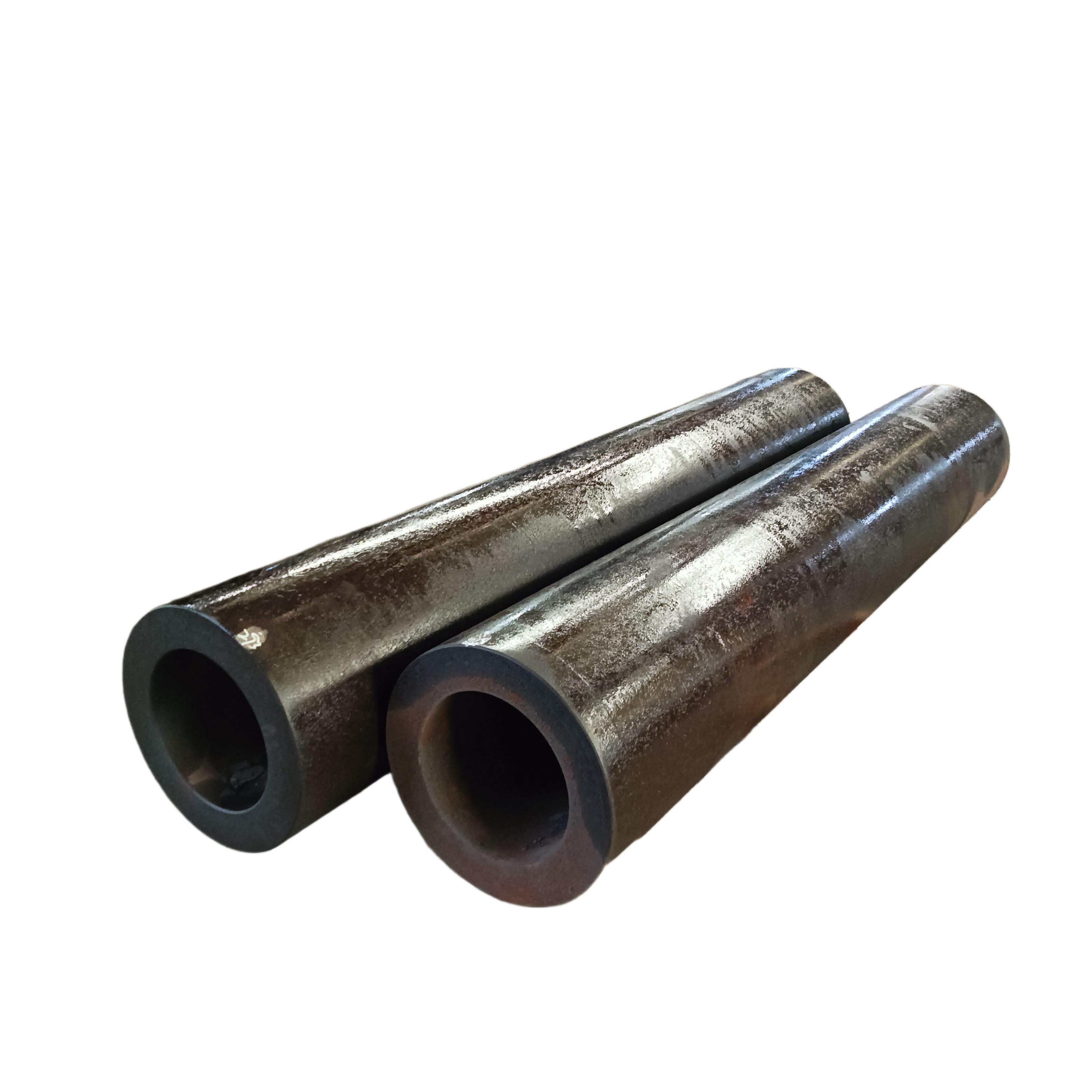

Forged Bore Rod
ETERNAL
As drilling depths commonly exceed 7,000 meters, the operating conditions for downhole tools have shifted from a mere requirement of "high strength" to a comprehensive performance demand combining high strength, high toughness and high fatigue life. For conventional quenched & tempered 4145H bars, insufficient toughness reserve and poor through-section hardness uniformity in complex formations have repeatedly emerged as weak points in drill tool failure analysis.
Jiangyin Eternal Heavy Industry Co., Ltd., a professional forging manufacturer, has addressed this pain point by adopting a full process chain consisting of EAF melting + VD vacuum degassing + forging + quenching and tempering heat treatment. Our 4145H forged core bars at the 120K MYS grade comply with both API Spec 7-1 and Fearnley Procter NS-1 requirements. The through-section hardness uniformity is controlled at a premium level of ΔH ≤ 20 HBW, providing reliable base material for critical components such as drill collars, stabilizers, crossover subs and wellhead valve bodies.
AISI 4145H is a Cr‑Mo low‑alloy Q&T steel. The suffix “H” stands for guaranteed hardenability, ideal for large‑section forged bars. Chemical composition limits of AISI 4145H are shown below(SAE J1268):
C | Si | Mn | Cr | Mo | P | S |
0.42–0.49% | 0.15–0.35% | 0.65–1.10% | 0.75–1.20% | 0.15–0.25% | ≤ 0.03% | ≤ 0.04% |
Regarding mechanical properties, typical specifications of our 4145H forged bore rods are as follows:
Min. Yield Strength (0.2% offset): 120,000 psi (827 MPa)
Tensile Strength: 140,000–160,000 psi (965–1,103 MPa)
Elongation (50 mm / 4D gauge): ≥14%
Reduction of Area: ≥45%
Hardness: 301–341 HBW
Impact (-20℃): single value ≥36 J, average ≥54 J, lateral expansion ≥0.38 mm
Max. Yield/Tensile Ratio: ≤0.93
This property package’s key advantage: it delivers 120K yield strength together with minimum 54J impact energy at -20℃, which is essential to avoid brittle failure of downhole tools in low-temperature deep wells. For wellhead components for frigid onshore fields and offshore platforms, these values directly govern operational safety.
Differences in quality of 4145H forged bore rods are rarely related to chemical composition. Instead, they lie in forging ratio and through‑section uniformity control in heat treatment. Our key process highlights:
The steel ingot of 4145H forged bore rod is heated to under 1200°C. Forging starts once the cross‑section temperature is uniform. Finish forging temperature ≥950°C, which avoids internal cracks caused by low‑temperature forging. Hot working compression ratio ≥4:1, enabling complete breakdown of as‑cast structure and removal of porosity and segregation.
ETERNAL uses water or polymer quenchant for quenching. Quench medium temperature ≤38°C at quenching start; max. 49°C for the whole immersion water quenching cycle. Tempering temperature ranges from 580–680°C, fine-tuned based on section size and target mechanical properties.For box furnace heat treatment, furnace temperature uniformity is tightly controlled: ±14°C max deviation for austenitizing & normalizing, and ±8°C max deviation for tempering.
A major concern for oilfield drilling tool and wellhead equipment buyers is internal material defects discovered only after machining, which causes full tool rejection. ETERNAL's 4145H forged bore rods pass the below NDE inspections before shipment:
Volumetric Inspection (UT): 100% ultrasonic testing with angle-beam contact method, calibrated to Φ1.6 mm flat-bottom hole sensitivity, to identify discontinuities including internal cracks, shrinkage cavities and flakes.
Surface Inspection (MT): 100% wet magnetic particle testing post machining; defect indication threshold ≤0.5 mm.
Visual Inspection (VT): 100% surface visual check to ensure no harmful cracks, laps or rolled-in scale.
All inspections comply with API Spec 7-1 or ASTM E587. Every rod has a unique bar ID traceable to heat number and heat treatment batch. MTCs are issued per EN 10204 Type 3.1, including chemistry, tensile, impact, hardness, grain size and NDE data.
4145H forged bore rods serve as raw material for key oil drilling and wellhead equipment components:
Drill collars & heavy-weight drill pipes: 4145H is the standard material for API Spec 7-1 drill collars. Forged bore rods are deep-hole machined into drill collar bodies, delivering weight-on-bit in the drill string while resisting alternating bending stress. Forged large-section rods have better grain flow continuity than rolled rods for enhanced fatigue resistance under high torque.
Stabilizers & crossover subs: 4145H MOD has tailored chemistry versus standard 4145H for better hardenability and toughness balance. It is ideal for stabilizer forgings and drill pipe subs under impact loading.
Wellhead valve bodies & flanges: AISI 4145H is widely used for API 6BX flanges and emergency shutdown valve bodies and other pressure-containing wellhead parts, benefiting from its excellent high-stress fatigue life.
Downhole & fishing tools: Fishing bowls, jar mandrels and MWD housings all depend on 4145H’s balanced strength and toughness.
What is the difference between 4145H and 4145H MOD?
4145H MOD is the upgraded version of 4145H. It features adjusted chemical composition (lower max carbon and optimized Mo range). It achieves better toughness and hardenability while maintaining 120K yield strength. For large-section forgings, 4145H MOD provides better through-section hardness uniformity and more stable -20°C impact values. Our forged bore rods can be supplied to 4145H or 4145H MOD as requested.
What lengths and diameters of 4145H forged bore rods can ETERNAL offer??
We produce solid and hollow forged bars with OD Φ90 mm to over Φ300 mm. Standard drill collar core bars are 3–6 m long; custom lengths are available to fit your deep-hole boring equipment. Inner bore machining allowance for hollow bars can be reserved per your drawing.
Why is hardness uniformity important for drill tool fabrication?
Extremely important. Large hardness variation across the section during deep-hole boring and threading will lead to irregular tool wear, bore size errors and unstable thread surface quality. Worse still, uneven hardness points to insufficient quench depth or incomplete tempering. Under cyclic high downhole stress, softer zones tend to initiate fatigue cracks. Our internal specification ΔH ≤ 20 HBW for premium grades eliminates this risk from the raw material stage.
Does ETERNAL accept third-party on-site inspection or customer-specified NDE standards?
Yes. Customers or their designated third-party inspectors may witness heat treatment, tensile tests and NDE on site. UT and MT can follow ASTM, ISO or API standards as you specify. Each batch comes with full furnace curves, quench temperature records and hardness distribution reports.
Can 4145H forged bore rods work in sour H₂S environments?
Standard 4145H is not intended for sour service. For H₂S environments, sour-resistant drill steels like 4137H MOD or higher-alloy grades are generally required. If your project involves sour oil and gas wells, please inform us early. We can recommend alternative materials or adjust chemistry to enhance sulfide stress cracking resistance.
