32Cr3Mo1V hot work die steel has high strength, good toughness, good hardenability, high temperature plasticity, good forging performance, and good machinability. It is generally used after tempering, normalizing, and high-temperature tempering.

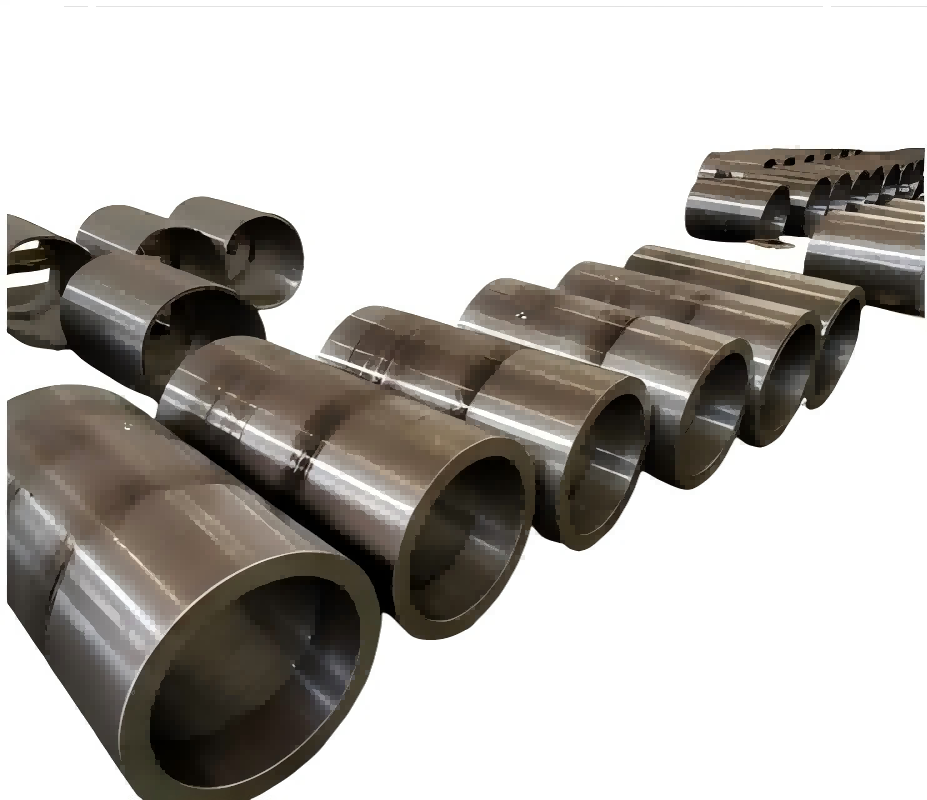

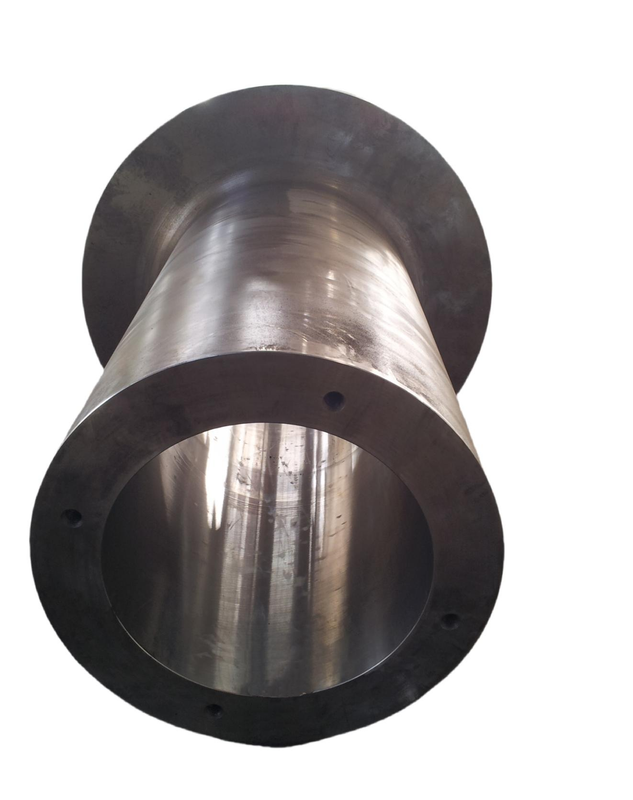

Essence: Medium-carbon Cr-Mo-V heat-resistant alloy forging. The roll sleeve is a hollow cylinder, assembled with a roll core made of materials such as 42CrMo via interference fit. In service, it withstands high temperature of approximately 600℃ from molten aluminum, cyclic rapid heating and cooling, rolling pressure, and friction, making it a key component determining the service life and cost of the casting-rolling line.
32Cr3Mo1V Chemical Composition
C | Si | Mn | Cr | Mo | V | P | S |
|---|---|---|---|---|---|---|---|
0.27-0.37% | 0.2-0.4% | 0.2-0.5% | 2.7-3.2% | 0.8-1.1% | 0.15-0.25% | ≤0.005% | ≤0.004% |
32Cr3Mo1V Feature
High strength: This steel has high strength and can withstand large working loads.
Good toughness: 32Cr3Mo1V has good toughness and can withstand impact and vibration, reducing the risk of fracture.
Good hardenability: The hardenability of steel refers to the uniformity and completeness of its structural transformation during quenching. The hardenability of 32Cr3Mo1V is good, which can obtain a uniform and fine structure, thereby improving the performance of the steel.
High temperature plasticity: This steel has good plasticity at high temperatures and can withstand significant deformation without cracking.
Good forging performance: 32Cr3Mo1V is easy to forge and process, and can be made into various complex shaped molds and parts.
Good machinability: Steel is easy to cut and can be conveniently made into the desired shape and size.
Roll Sleeve Production Process
Vacuum refining+electroslag remelting: strict control of P, S, and residual elements to reduce segregation and inclusions;

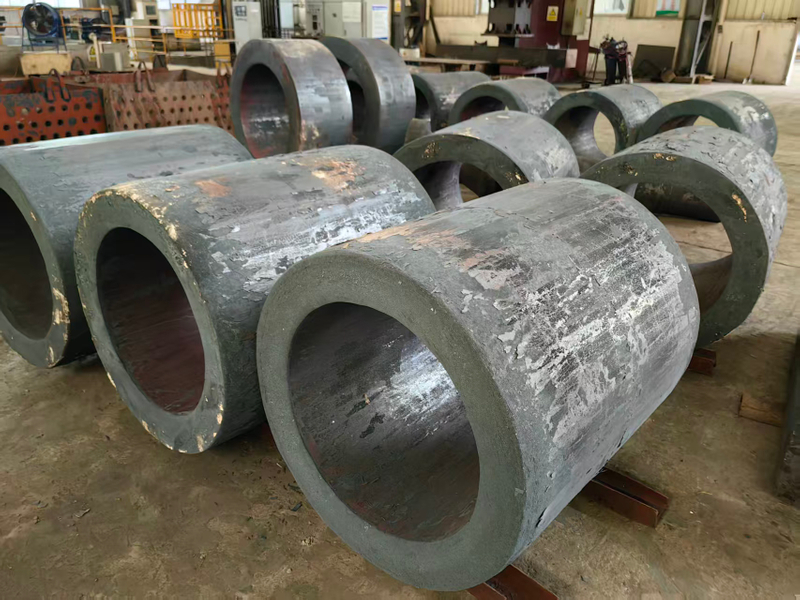

Forging+post forging heat treatment: upsetting- punching hole- expanding forming;
920 ± 10 ℃ uniform hot air cooling+720 ± 10 ℃ high-temperature tempering slow cooling, completely eliminating forging stress and refining grain size;
Rough machining+heat treatment: 900 ± 10 ℃ austenitization water quenching, 580 ± 10 ℃ high-temperature tempering air cooling;
Precision machining+non-destructive testing (UT/MT/PT): inner hole and outer circle precision grinding, with interference fit controlled at 0.04-0.08 mm;
Surface strengthening (optional): laser cladding cobalt based alloy, plasma welding, nitriding, industrial frequency quenching，further improving surface wear resistance and thermal fatigue resistance;
Assembly+Dynamic Balance: Combining hot/cold installation with roller core for dynamic balance testing.
Mechanical Properties
Room Temperature:
Yield strength: approx. 1300 MPa, tensile strength: approx. 1420 MPa, elongation: 15%, reduction of area: 60%, impact value AKV₂ ≈ 60 J, hardness: approx. 421 HB (equivalent to 41–43 HRC).
Elevated Temperature (630 °C):
Yield strength: approx. 748 MPa, tensile strength: approx. 830 MPa, which can meet the high-temperature service requirements of cast-rolling rolls.
Core Advantages:
Excellent resistance to temper softening, slow initiation and propagation of thermal fatigue cracks, and good retention of high-temperature hardness.
