High Strength 4330V Steel Raise Boring Forging Drill Rod with OD 12-7/8'' for Shaft Construction

Share to:

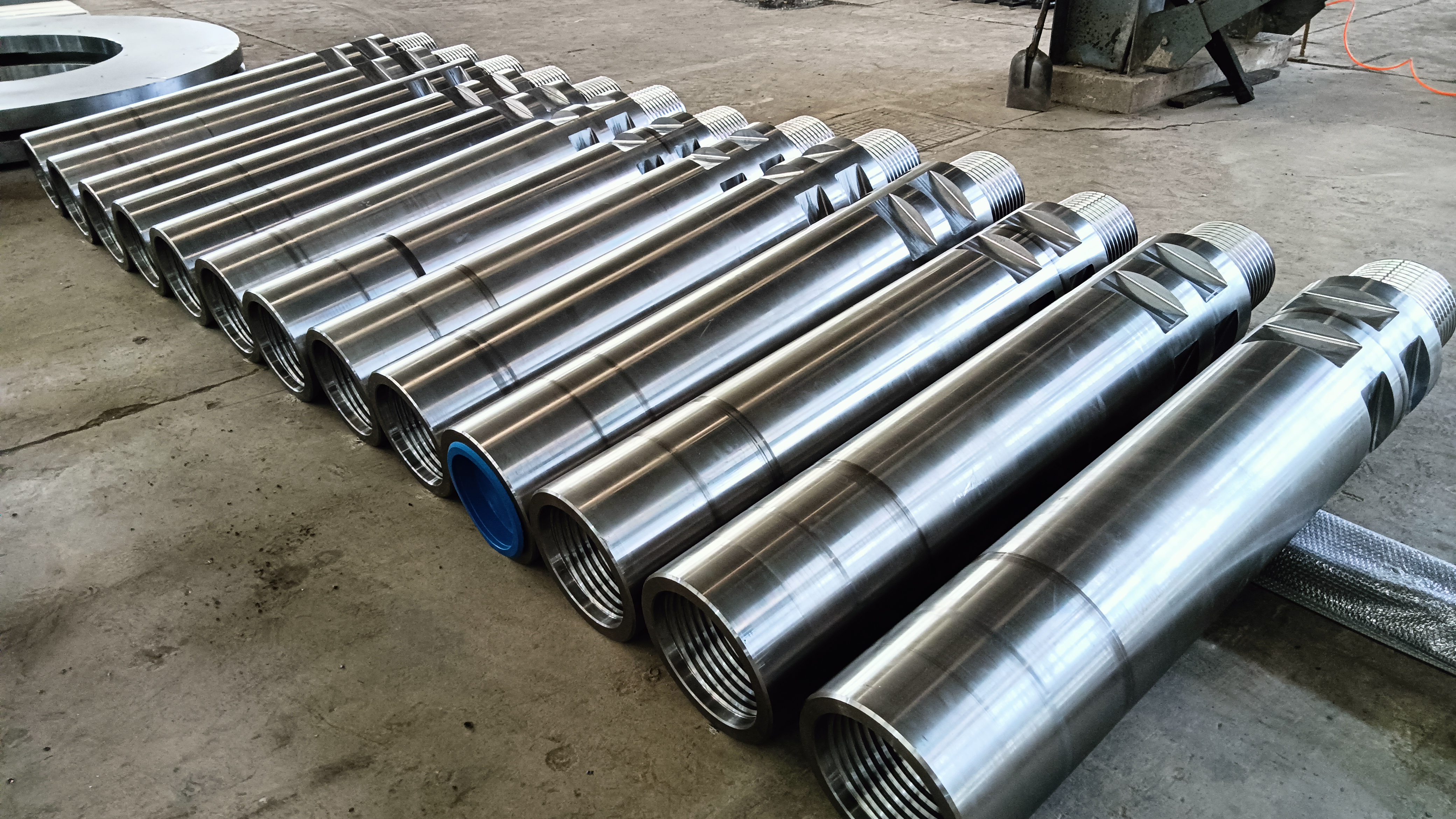

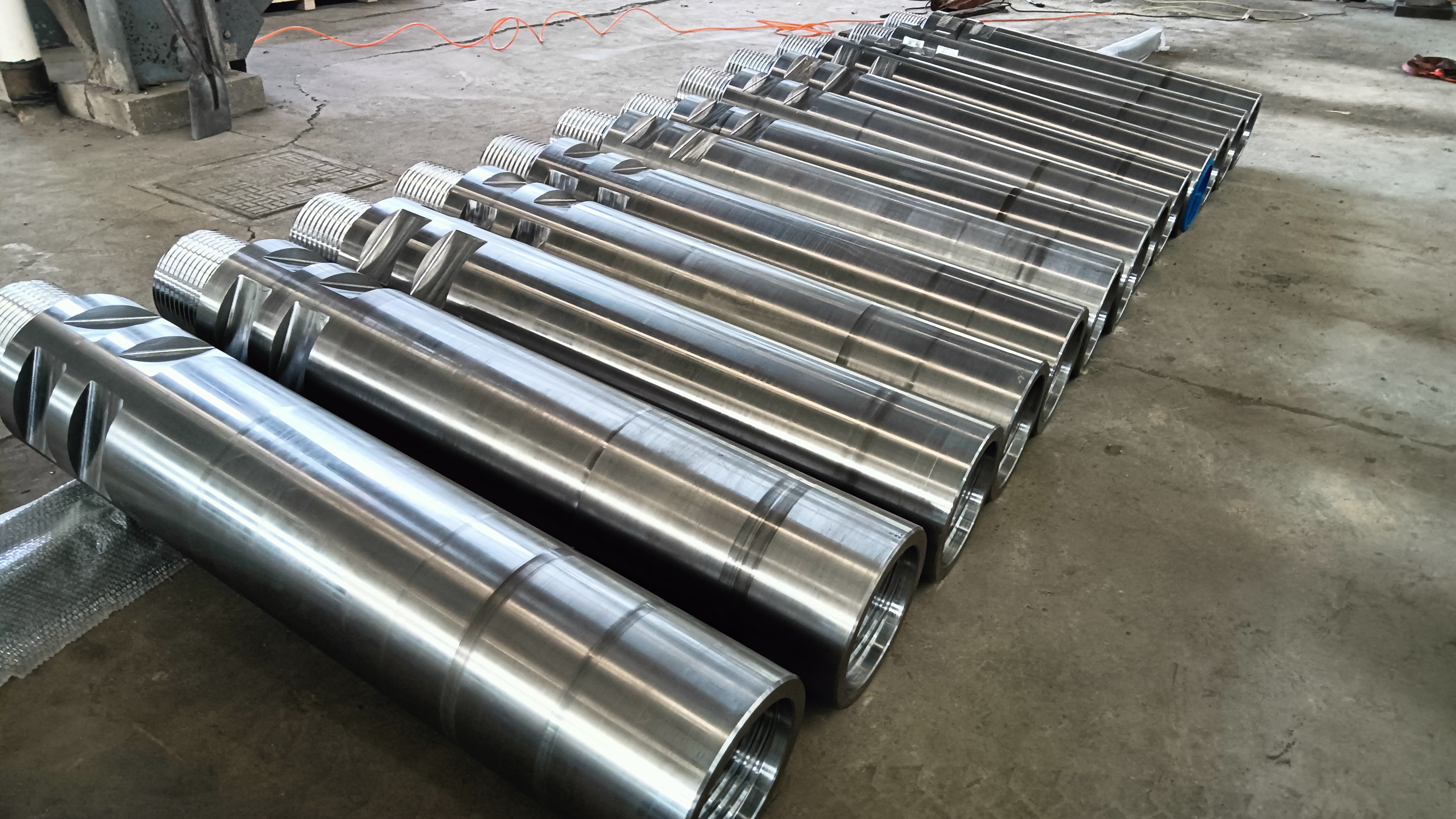

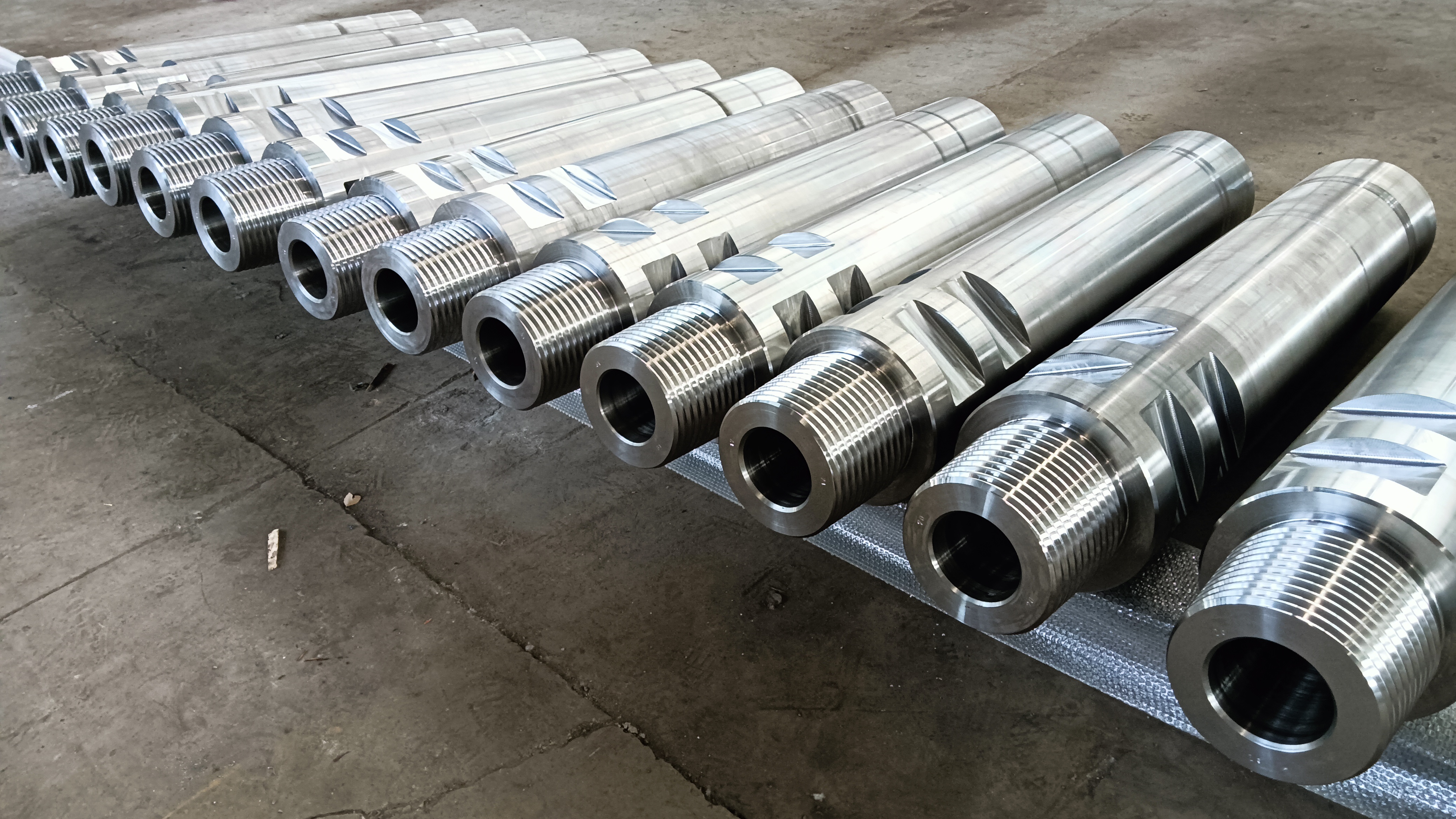

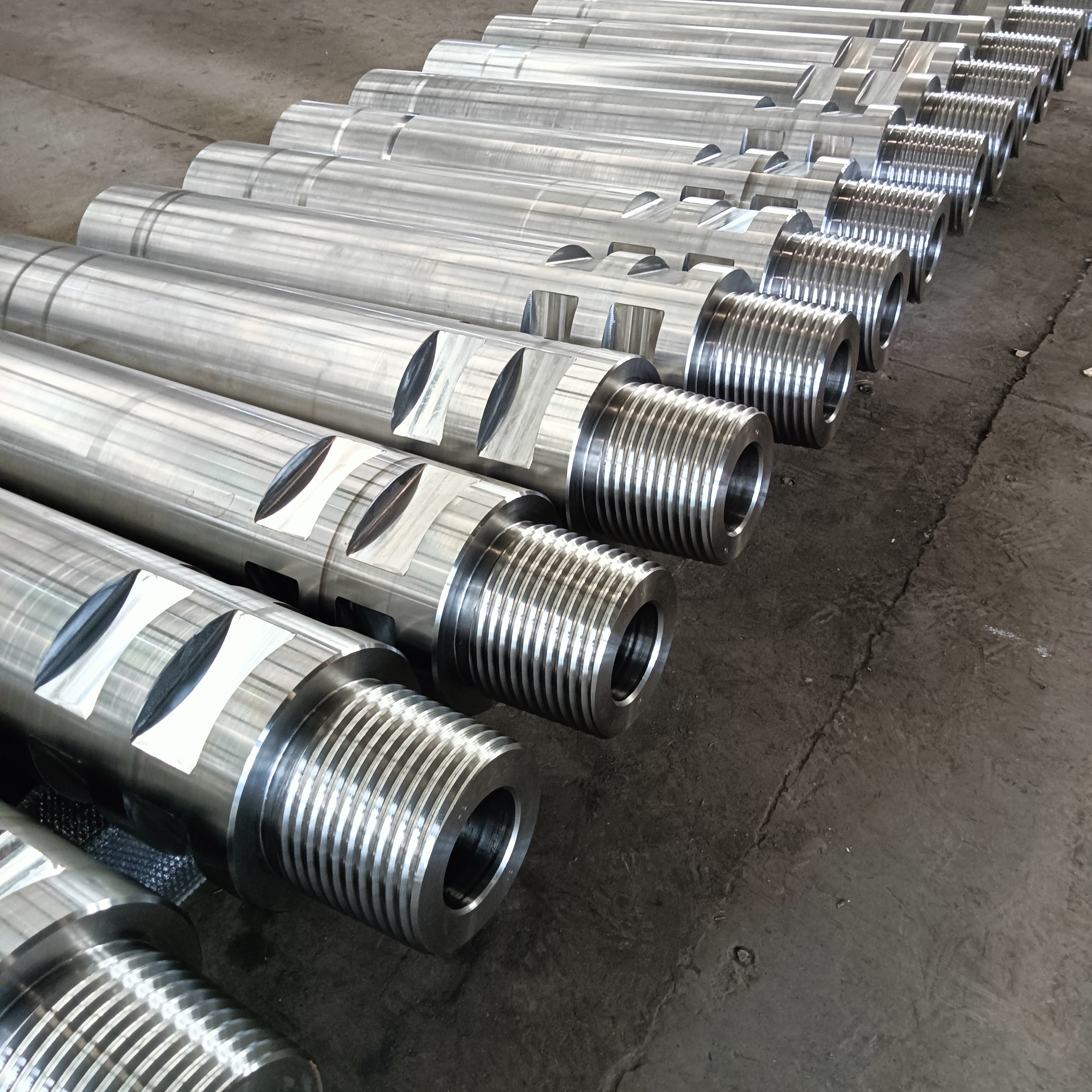

High Strength 4330V Steel Raise Boring Forging Drill Rod with OD 12-7/8'' for Shaft Construction

Name: High Strength 4330V Steel Raise Boring Forging Drill Rod with OD 12-7/8'' for Shaft Construction
Brand: ETERNAL
Rating: 5.0 (6 reviews)

1. Size: OD 12-7/8'', TR 10-1/2''

2. Service:Customized
3. Material: Alloy steel 4330V
4. Product Procedure:Forging,heat treatment,lathe machining
5. Heat treatment: Quenching and tempering

6.Weight: 740kg
7.Lead time:60 days after receiving the advance payment
8.Payment type :50% after signing the contract, and 50% before shipment
7.Payment terms:FOB/EXW/FCA/CIF，etc
8.Package: wooden box
9.MOQ: 10 pcs
10.Quality Warranty Certificate: chemical composition and mechanical properties test certificates

Availability:

Quantity:



Inquire Add to Basket

Model:
RBM drill rod-OD 12-7/8'',TR 10-1/2'',Customized
Brand:
ETERNAL

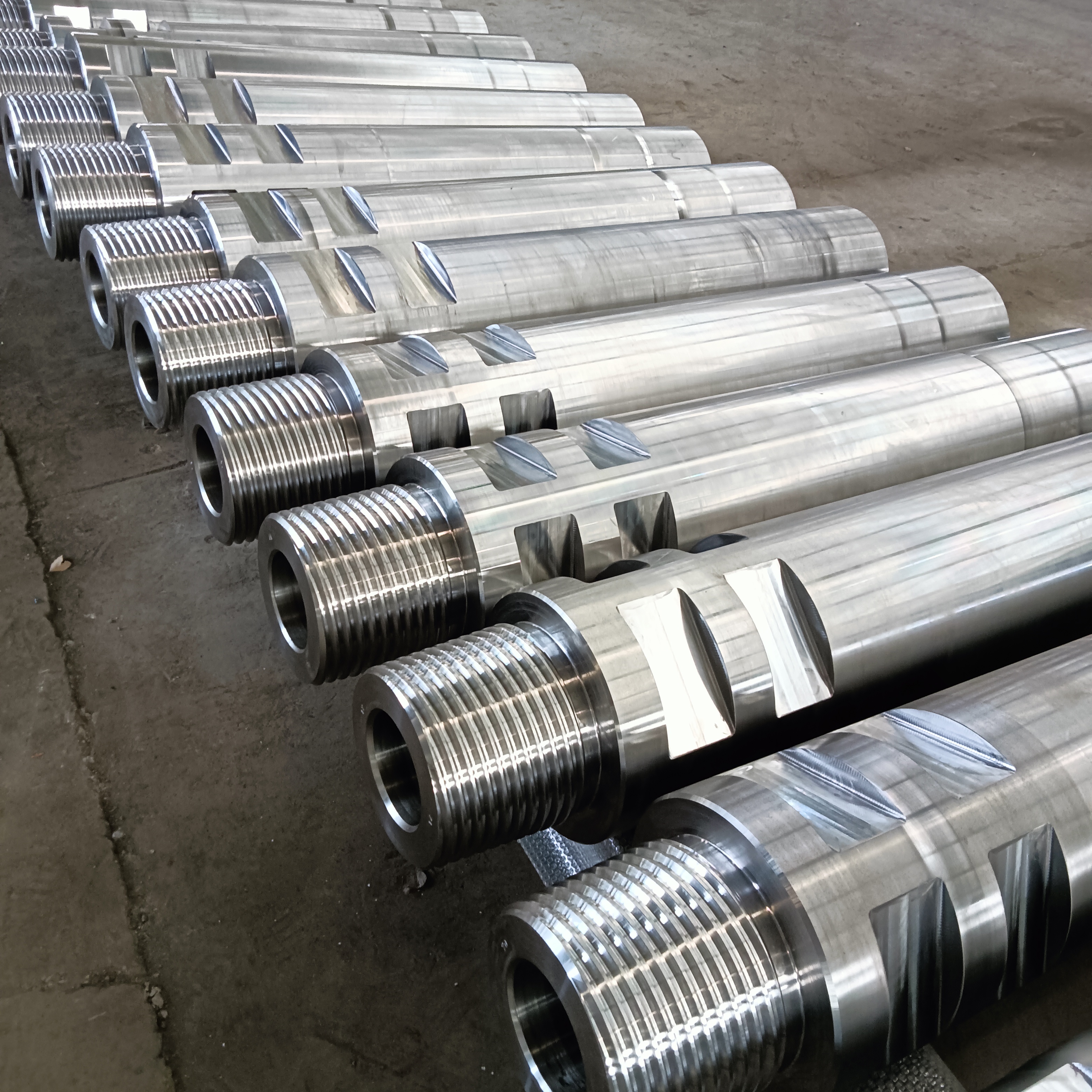

Product Description

This kind of drill rod is used for raise boring machine.We could manufacture 8'' to 15''drill rod.It chooses high strength alloy steel forging material and heat treatment,therefore it has excellent mechanical property and impact value.They could be installed on machines of Atlas Copoc,Robbins,NFM,etc .

Application

1.Mining Engineering

Ventilation shaft, drainage shaft, manway shaft, coal chute shaft, backfill shaft

2.Oil & Gas Drilling

Deep oil well, gas well exploration and production

3.Geotechnical Engineering

Geological core drilling for highway, railway and water conservancy projects

4.Tunnel & Underground Engineering

Construction of metro shaft, ventilation shaft and shield launching shaft

Raise boring construction of inclined shaft and escape shaft

5.Water Conservancy Engineering

Water well drilling, deep well water intake

Why Choose 4330V?

High yield strength and high toughness: It is not easy to break or suffer fatigue failure under the working conditions of deep wells, hard rock, large tension and torque.
Vanadium (V) grain refinement: Its impact resistance and vibration resistance are far superior to conventional 4140/4340 steel.
Integral forging plus quenching and tempering: Weld-free structure with uniform metallographic organization, suitable for the alternating tension and torsion load of raise boring machines.

AISI 4330V Chemical Composition

C	Cr	Ni	Mo	V
0.26-0.33%	0.8-1.1%	1.4-1.7%	0.15-0.25%	0.05-0.1%

Mechanical property

Tensile Strength: 1100–1200 MPa

Yield Strength: ≥1034 MPa

Elongation: ≥15 %

Reduction of Area: ≥45 %

Room Temperature Impact Energy (Akv): ≥45 J

Hardness: 30–34 HRC

Forging and Heat Treatment Process

Forging:Initial forging temperature: 1150–1230℃,Finish forging temperature: ≥850℃,

Forging ratio: ≥4:1,Integral forging without weld seams.

Heat Treatment:

Quenching: Holding at 870–880℃, followed by water cooling
Tempering: Holding at 600–620℃, followed by air cooling
Purpose: To obtain uniform tempered martensite and achieve an optimal balance of strength and toughness.

Surface Treatment: Nitriding on threads / plasma spraying, to improve wear resistance and anti-galling performance.

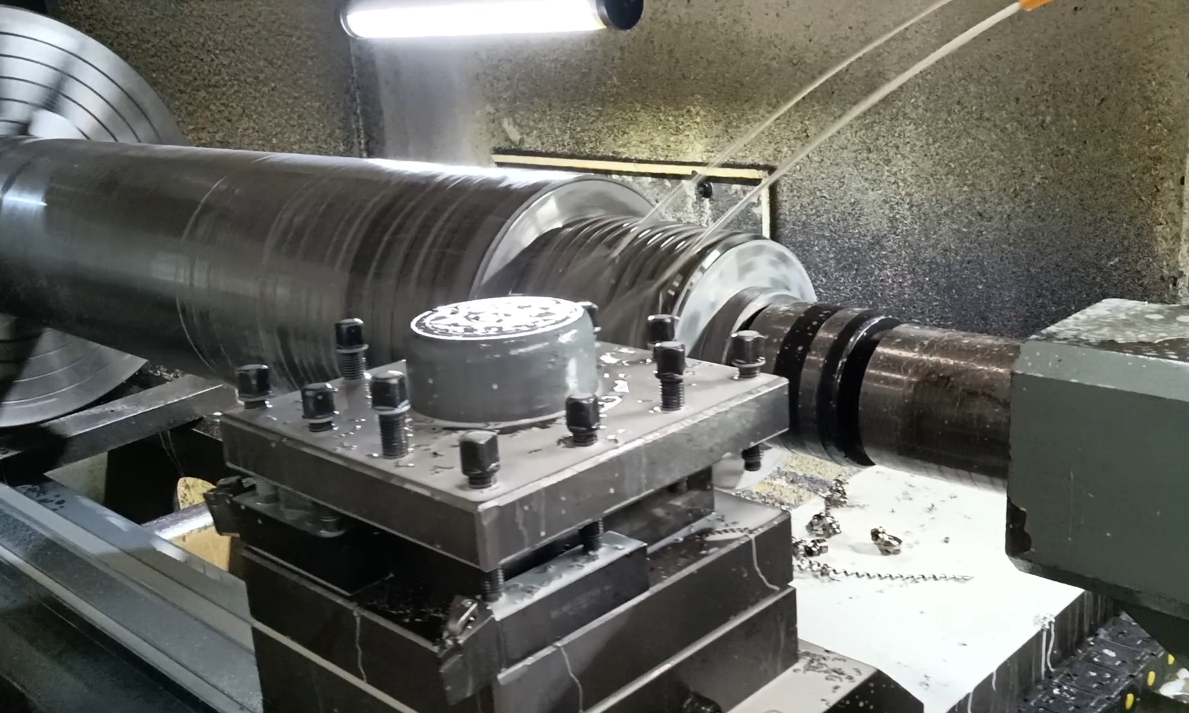

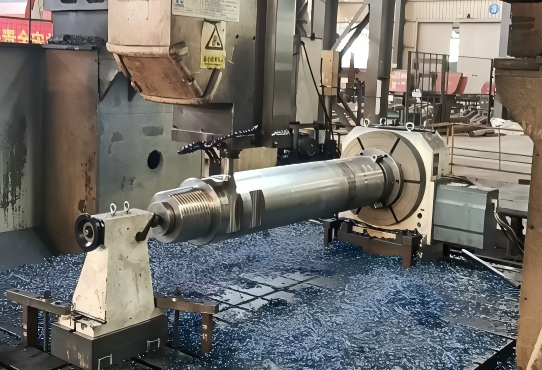

Machining
