RBM-Roller Cutter,7" to 19",Customized
ETERNAL

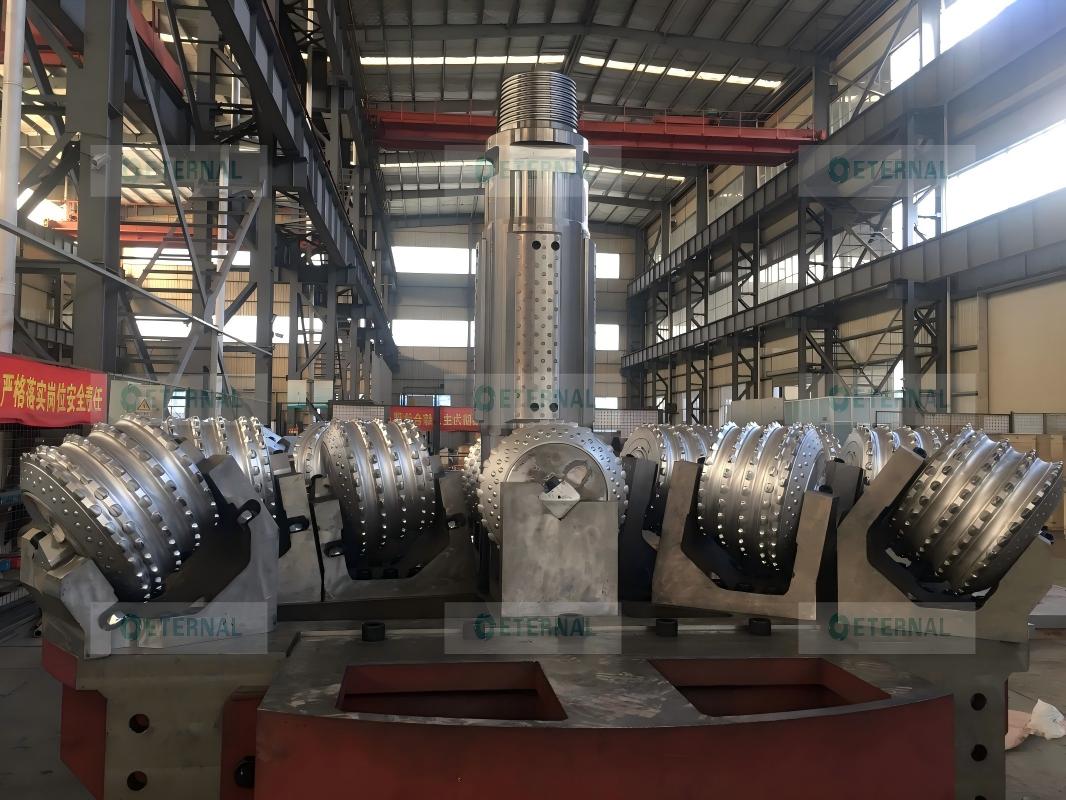

The raise boring roller cutter is an inserted-tooth cutter mounted on raise boring machines.Its surface is inserted with tungsten carbide buttons, serving as rock-breaking excavation tools. Primarily used for the construction of vertical shafts, inclined shafts, surge shafts, ventilation shafts and escape shafts, the raise boring roller cutter is widely applied in underground engineerings including mining, hydropower and transportation.
Parameter | Specification |
Brand | ETERNAL |
| Material | |
| Size Range | 7''-19''(178-483mm) |

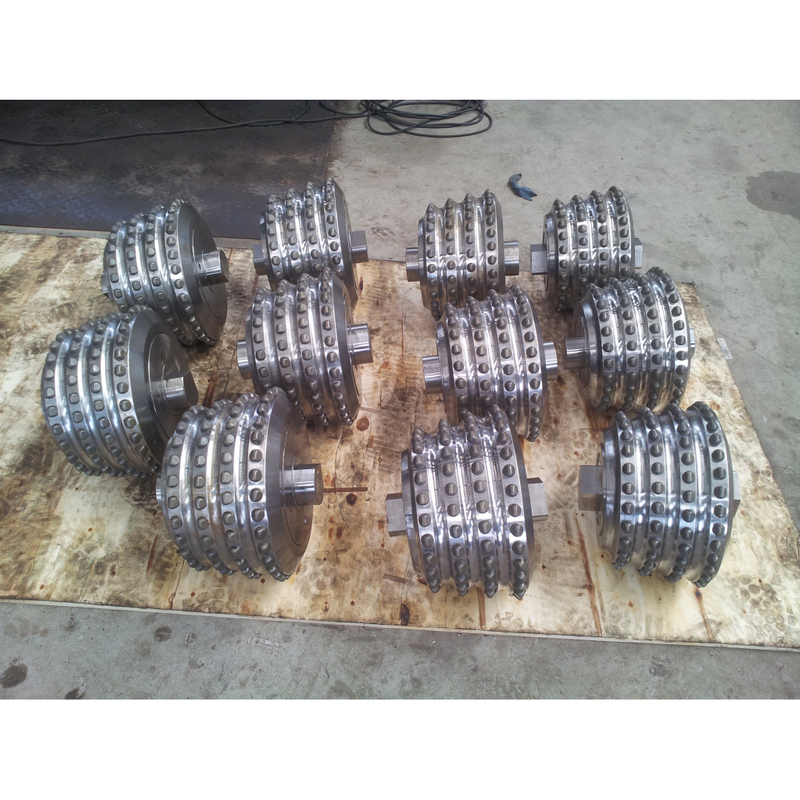

| Rows Division | 3-Row cutter,4-Row cutter,5-Row cutter |
| Bearing | Rolling pin or Tapered roller bearing |
| Rock Types | Sandstone, limestone, granite, basalt, etc |
| Rock Hardness | F6-F18 |
| Application | Tunnel Boring Machine and Raise Boring Machine |
| Applicable brands | Sandvik, Epiroc, Herrenknecht, Robbins, TUMI, TERRATEC,NFM, etc. |
| Service | Customized |
Bearing delivers excellent wear resistance and deformation resistance with well-rounded overall performance. Optional bearing types: tapered roller bearings, rolling pin bearing.
1.ETERNAL raise boring roller cutters have been field-proven under a wide range of rock conditions. Optimized on cutter body structure and tooth spacing in accordance with the mechanical properties of rocks from various formations, these cutters are applicable to tunneling in rock strata of varying hardness including sandstone, limestone, granite and basalt , catering to diverse engineering requirements.
2.By adopting scientific calculation and analytical approaches, we accurately determine the optimal cutting efficiency and moving direction for each row of carbide teeth, allowing every carbide insert to achieve maximum rock fragmentation area and volume upon contact with the borehole wall.
3.Featuring exceptional wear resistance, stable performance and long service life, our raise boring roller cutters cooperate seamlessly with raise boring machines for high-efficiency rock breaking. This shortens construction cycles, boosts drilling efficiency and reduces overall project costs.

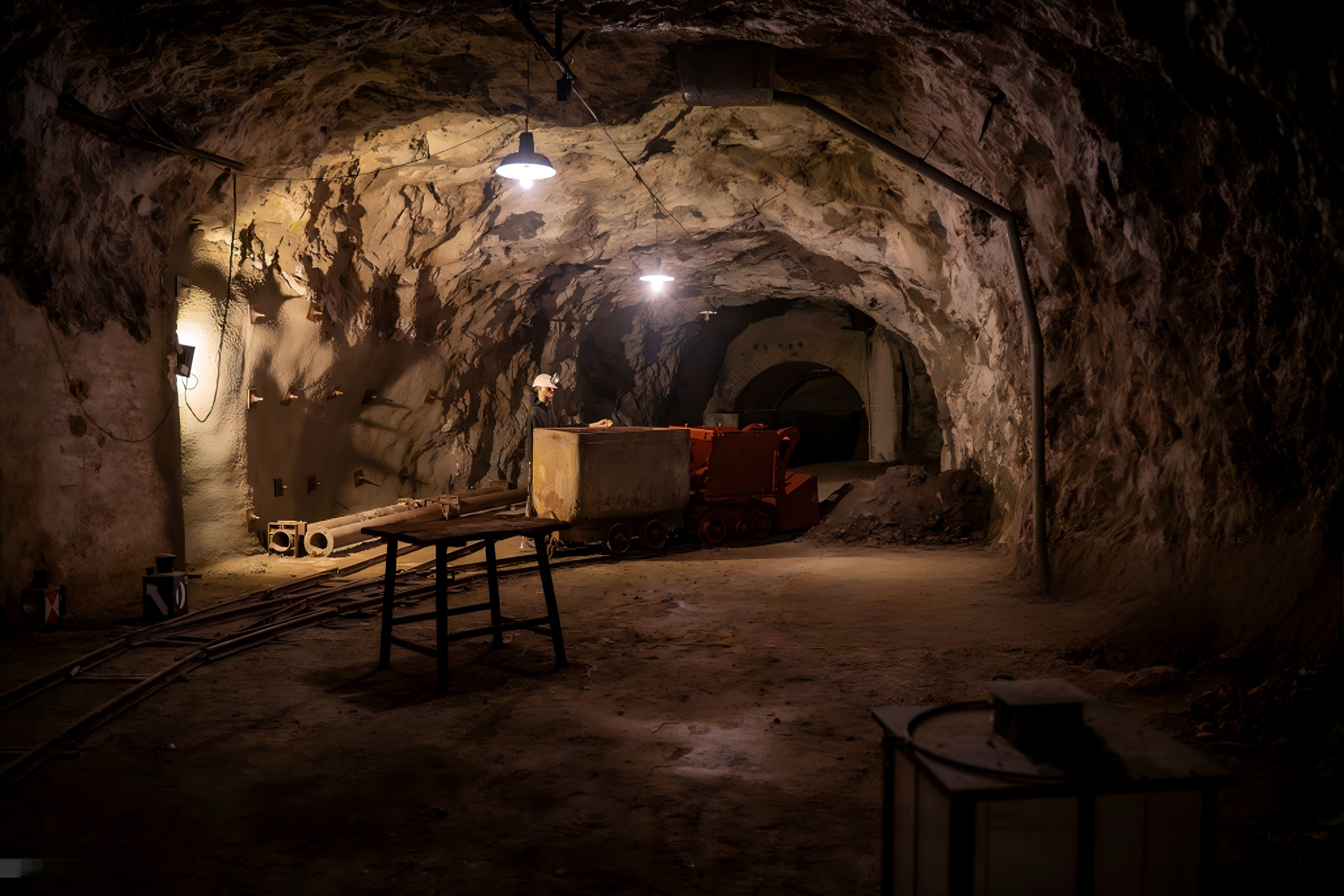

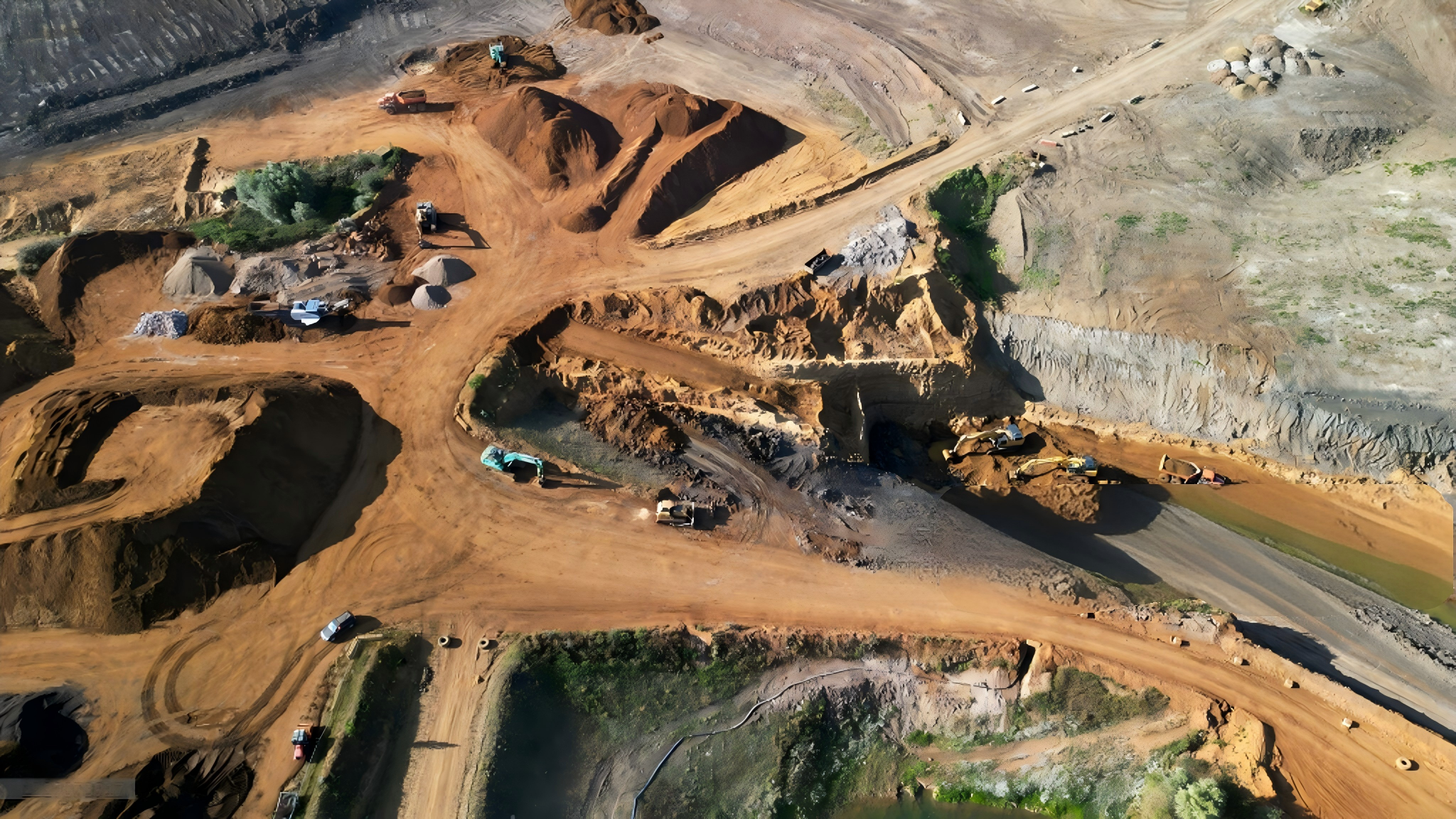

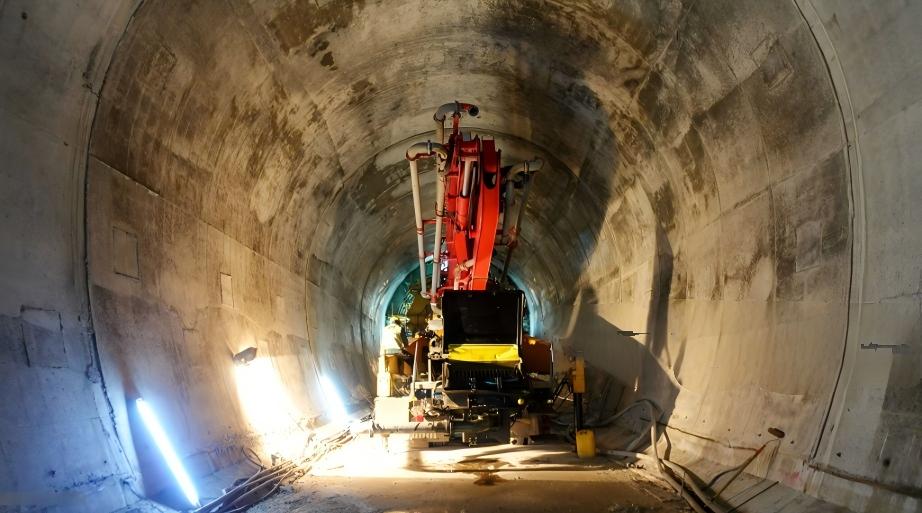

The raise boring roller cutters are widely applied in underground engineerings including mining, hydropower and transportation.

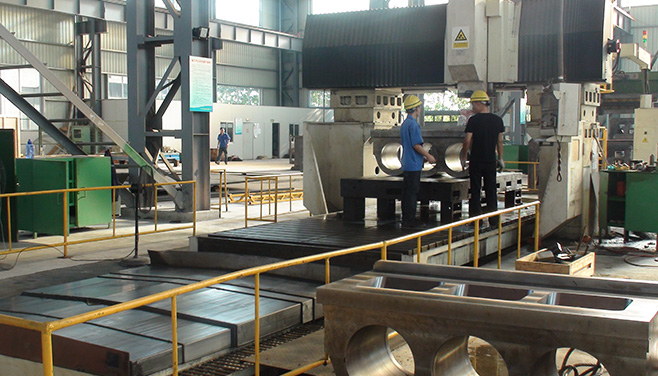

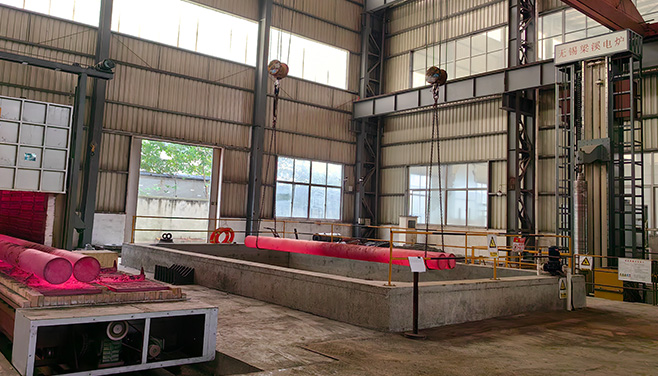

ETERNAL factory is equipped with complete and advanced production equipments, including a 2000 tons forging production line, heat treatment production line and machining production line.
ETERNAL employs an experienced production and technical team, with many staff members boasting 10 to 30 years of industry experience. The team is capable of manufacturing consistently high-quality products as well as providing customized product solutions.
ETERNAL has obtained ISO9001:2015, ISO45001:2018, ISO14001:2015 quality management system certifications. We guarantee rigorous inspection of every finished product prior to delivery.
ETERNAL rock drilling tools are fully interchangeable and compatible with global well-known raise boring machine brands such as Sandvik, Epiroc, Herrenknecht, Robbins, TUMI, NFM, etc.
ETERNAL customers are from Brazil , Chile, Mexico, Russian, Korea, Vietnam, India etc.

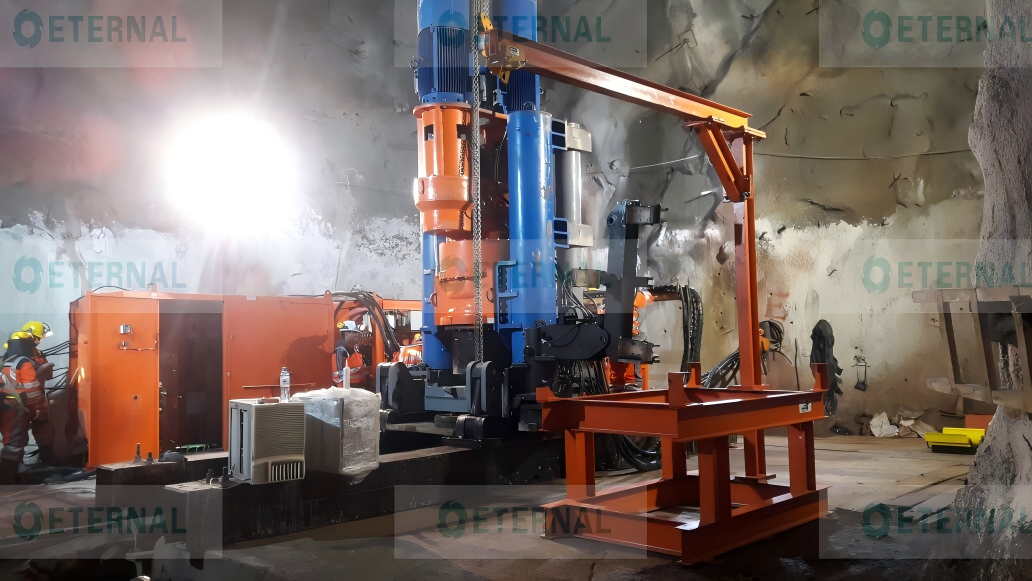

The raise boring roller cutters manufactured by ETERNAL fit raise borers, raise shaft drilling rigs, raise reaming rigs, mineral vein drill rigs, mining drilling machines and reverse circulation drill rigs with cutterhead diameters ranging from 660mm to 6000m.
