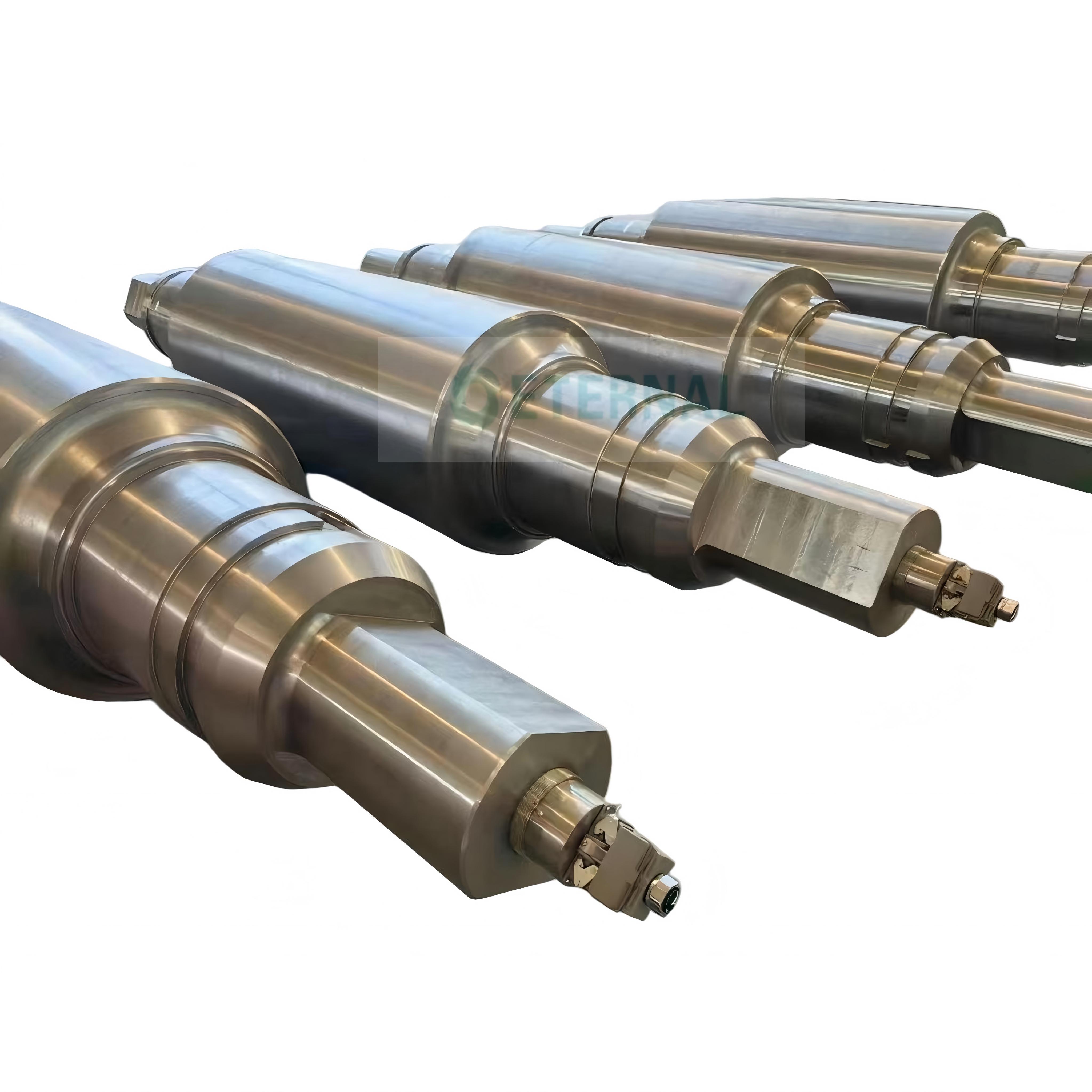

Roll surface integrity directly dictates product quality in cold rolling operations. Mill operators rely on precise roll geometry to maintain tight tolerances and specific surface finishes. When roll surfaces degrade, operational friction increases rapidly. Plant managers face a difficult technical balancing act. They must weigh the capital expenditure of premature roll replacement against severe operational risks. Running compromised rolls leads to strip defects, unplanned mill downtime, and catastrophic roll failure.
You need a strict technical framework to evaluate roll wear accurately. This framework determines when routine maintenance is sufficient. It highlights when precision regrinding is absolutely required. Finally, it identifies when a roll reaches its absolute end-of-life and demands immediate replacement. Applying these criteria protects mill equipment and ensures consistent steel production.
Wear Identification: Differentiating between surface-level degradation (correctable via grinding) and subsurface structural fatigue (requiring replacement) is critical for mill safety and product quality.
Dimensional Thresholds: The decision to regrind is strictly bound by the roll's minimum scrap diameter and the remaining depth of the hardened layer.
Peripheral Integrity: A roll's viability isn't just about the barrel; roll neck condition and chock bearing clearances dictate whether a roll can safely return to service.
Supplier Expertise: Partnering with a qualified rolling mill roll supplier ensures accurate non-destructive testing (NDT) and precision refinishing, mitigating the risk of catastrophic in-mill failures.
Roll performance depends on three primary success criteria. First, the roll must maintain its engineered crown profile under heavy loads. Second, it must retain a consistent surface roughness to grip the strip. Third, it requires absolute structural stability to withstand immense rolling pressures. Wear directly compromises these metrics. Understanding how cold rolling work roll wear develops is the first step in effective mill maintenance.
Abrasive wear occurs continuously during mill operation. The roll surface maintains constant contact with the moving steel strip. Micro-slip between the roll and the strip generates friction. Residual scale on the incoming strip acts as an abrasive medium. This constant grinding action slowly degrades the roll barrel, altering the engineered crown profile and smoothing out the required surface texture.
Rolled material properties significantly influence wear rates. Processing high-strength materials accelerates surface degradation. Advanced High-Strength Steels (AHSS) and silicon steels require massive reduction forces, often exceeding 1000 MPa in the roll bite. These materials generate exponential contact stresses. The roll surface absorbs this energy, leading to rapid micro-structural breakdown and accelerated abrasive wear.
Thermal fatigue presents another major challenge. The rolling process generates intense localized heat due to plastic deformation of the strip. Cooling headers spray emulsion onto the rolls to manage temperatures. This rapid heating and cooling cycle causes severe thermal gradients across the roll surface. Over time, surface micro-cracking develops. Operators often call these "fire cracks." Insufficient lubrication, blocked cooling nozzles, or sudden mill stops accelerate this thermal fatigue.
Localized mechanical damage happens during rolling incidents. Strip breakage causes sudden, violent impacts. Cobbles force cold steel into the roll bite irregularly, overloading specific sections of the barrel. These events cause spalling. Spalling involves chunks of the hardened roll surface breaking away. This leaves deep craters that ruin strip quality immediately and require aggressive corrective grinding.
Operators must watch for specific operational red flags. A loss of the specific roll profile is a primary indicator. The mill will struggle to hold tight tolerances on the end product. Edge drop issues may increase. Center buckle or wavy edges might appear on the strip. These shape defects signal that the roll crown has worn flat or concave, losing its ability to distribute rolling loads evenly.
Visible surface defects on the rolled strip demand immediate attention. Chatter marks indicate roll vibration, bearing wear, or uneven roll wear. Imprints or repeating gouges point to localized roll damage, such as a spall or a rolled-in foreign object. Capacity reduction often correlates with deteriorating roll condition. A loss of strip grip causes slipping in the mill stand. The automation system will compensate by increasing mill loads. Higher motor currents and increased rolling forces confirm that the roll surface has lost its optimal texture.
To catch these issues early, maintenance teams should follow a strict daily inspection routine:
Monitor mill motor current trends to detect gradual increases in rolling force.
Inspect the strip surface visually under high-intensity inspection lights for repeating defects.
Measure strip profile thickness across the width using inline x-ray or isotope gauges.
Check rolling emulsion filters for excessive metallic fines, indicating accelerated roll wear.
Listen for abnormal acoustic signatures from the mill stand, which often precede chatter marks.
Maintenance teams rely on cold rolling mill roll regrinding as their primary restoration method. Precision grinding removes damaged material. It restores the exact geometric profile. It prepares the surface for subsequent texturing. However, grinding has strict technical limitations based on roll metallurgy and remaining diameter.
Effective work roll regrinding requires advanced technical capabilities. Modern CNC roll grinders execute this task using specialized grinding wheels, typically aluminum oxide or cubic boron nitride (CBN). The machine must restore the exact surface finish required for the specific mill stand. It must also recreate precise crown profiles. These include parabolic crowns, Continuously Variable Crown (CVC) profiles, or complex polynomial shapes. Precision here dictates the mill's ability to control strip shape.
Material removal rates require careful calculation. The grinder must remove enough material to eliminate all micro-cracks. It must clear away the entire fatigued surface layer. However, grinding too deep sacrifices unnecessary roll life. Operators use eddy current testing during grinding. This ensures they stop grinding exactly when the crack network disappears. Coolant application during grinding is equally critical. Insufficient coolant leads to grinding burns, which locally re-harden or temper the roll surface, creating soft spots that will fail in the mill.
Post-grind surface texturing is often mandatory. Smooth ground rolls cannot grip the strip effectively in many cold rolling applications. Facilities use Electrical Discharge Texturing (EDT) or shot blasting. These processes restore specific friction coefficients. They establish precise Ra (average roughness) and Rz (peak-to-valley height) values. For example, exposed automotive body panels often require a highly specific EDT texture to ensure proper paint adhesion downstream.
Maintenance strategies for backup rolls differ significantly from work rolls. Work rolls dictate surface finish and strip shape. Backup rolls bear the primary rolling loads. They prevent the work rolls from bending under extreme pressure. Therefore, backup roll maintenance focuses primarily on structural integrity rather than surface texture.
Backup rolls suffer from severe subsurface fatigue. The constant pressure creates intense Hertzian contact stresses. These shear stresses peak several millimeters below the roll surface. Over time, subsurface micro-cracks initiate and propagate parallel to the surface. If left unchecked, these cracks cause massive spalling. Grinding backup rolls requires removing enough material to eliminate this subsurface fatigue zone, even if the visible surface appears pristine. Removing 1.0mm to 2.0mm of diameter is common during routine backup roll maintenance to ensure the fatigue zone is completely cleared.
Regrinding is the correct choice under specific conditions. First, the damage must remain strictly at the surface level. There can be no deep structural compromise. Second, the roll diameter must remain well above the mill's minimum operational specifications. Third, the hardened layer must remain intact. If the roll meets these three criteria, precision grinding will safely return it to service.
Regrinding eventually ceases to be a viable option. Every roll has a finite lifespan. When maintenance limits are breached, procurement becomes mandatory. Running a roll past its technical limits guarantees catastrophic failure.
The minimum scrap diameter represents a hard physical limit. Mill stands have specific geometric constraints. Hydraulic cylinders and screw-down mechanisms have maximum travel distances. Furthermore, the work roll chocks will eventually contact each other if the rolls become too small. Once a roll is ground below the scrap diameter, the mill can no longer close the roll gap sufficiently. The roll is physically useless for that specific mill stand.
Metallurgical limits also dictate cold rolling mill roll service life. Forged steel rolls feature a hardened outer shell, typically created via induction hardening. This hardened zone usually extends 15mm to 30mm deep, depending on the roll size. The core remains softer to absorb impact and resist fracture. Repeated grinding eventually penetrates beyond this usable hardened depth. Once exposed, the softer core cannot withstand cold rolling pressures. The roll will deform instantly under load.
Severe structural damage demands immediate replacement. Deep thermal shocks from cooling failures ruin roll integrity. Massive spalling events often remove material deeper than the hardened layer. Internal core cracking, detected via ultrasonic testing, is fatal. A roll with internal cracks will shatter under rolling loads, destroying mill chocks, bearings, and potentially the mill housing itself.
Replacing a roll presents a strategic engineering opportunity. You do not have to replace it with an identical OEM standard. You can upgrade materials to extend service life. Moving from standard forged steel (like 2% to 3% Chromium alloys) to high-speed steel (HSS) offers massive wear resistance improvements. HSS rolls feature complex carbide networks that resist abrasive wear exceptionally well. Advanced semi-steel alloys provide better thermal stability for demanding applications.
Procuring a custom replacement rolling mill roll helps modernize aging cold rolling mills. Older equipment often struggles with modern high-strength alloys. Custom rolls engineered with modern metallurgy allow older mills to handle these tougher materials. This strategy helps aging facilities regain value and expand their product capabilities without replacing the entire mill stand.
Plant managers and metallurgists need a structured methodology to make the final decision. Guesswork leads to mill damage. This framework relies on empirical data, mechanical inspections, and operational risk analysis.
Non-Destructive Testing (NDT) forms the foundation of roll evaluation. Ultrasonic testing (UT) probes deep into the roll core using the pulse-echo method. It identifies internal flaws, voids, and deep structural cracks. Eddy current testing scans the surface and near-subsurface. It maps out micro-crack networks invisible to the naked eye. These tests dictate exactly how much material the grinder must remove.
Continuous hardness testing verifies the remaining working layer. Technicians use Shore C or Leeb rebound hardness testers across the entire roll barrel. Proper surface preparation is required to get accurate Leeb readings. Technicians check for soft spots caused by localized overheating or grinding burns. They also verify that the current diameter still possesses the required hardness for cold rolling. If hardness drops below mill specifications, the roll must be scrapped.
Roll Evaluation Criteria Matrix | ||
Inspection Parameter | Acceptable for Regrind | Mandatory Replacement |
|---|---|---|
Surface Micro-cracking | Depth < 0.5mm (removable) | Depth exceeds hardened layer |
Barrel Hardness (Shore C) | Uniform, meets OEM spec | Severe drop-off, soft spots detected |
Internal Structure (UT) | Clear, no echo anomalies | Internal cracks or voids detected |
Roll Diameter | Above minimum scrap diameter | At or below minimum scrap diameter |
Roll Neck Condition | Intact, within tolerance | Torsional fatigue cracks present |
Roll viability extends far beyond the barrel condition. The roll necks endure massive torsional forces from the mill drive spindles. Technicians must inspect roll necks for torsional fatigue and stress fractures. They must also check the drive tangs or flats for excessive wear. A pristine barrel is useless if the roll neck snaps under load.
Critical maintenance checks during roll changes protect the entire assembly. Technicians must verify chock bearing clearances using micrometers or feeler gauges. Maintaining strict radial tolerances, typically between 0.02mm and 0.04mm, is critical. Excessive clearance causes roll vibration and chatter marks on the strip. Inspecting bearing seals is equally important. Failed rotary seals allow rolling emulsion to contaminate bearing grease, leading to rapid lubrication failure and bearing seizure.
Evaluate the direct operational risks of regrinding versus procuring a new roll. Regrinding involves machining time, abrasive wheel consumption, and transport logistics. However, this calculation changes if the roll requires excessive grinding time due to deep damage. Removing 5mm of diameter to clear a deep spall consumes massive amounts of grinding wheel life and machine time.
Evaluate the risk of catastrophic failure carefully. Mistakenly regrinding a structurally compromised roll carries immense risk. If that roll shatters in the mill, the direct consequences explode. You lose the roll, the bearings, and the chocks. You also face extended unplanned downtime to clear the wreck, extract the broken steel strip, and repair the mill stand. When NDT results are borderline, replacing the roll is always the safer operational decision.
Poor vendor selection introduces massive operational risks. Improper grinding leaves micro-cracks behind. Poor metallurgical control during manufacturing results in premature roll failure. You must evaluate partners rigorously.
Specify strict technical capabilities when selecting a rolling mill roll supplier. They must utilize modern CNC roll grinders. Manual grinding cannot achieve the complex CVC profiles required by modern mills. They must use in-process measurement systems to verify geometry continuously during grinding. They must guarantee tight runout tolerances, ensuring Total Indicator Reading (TIR) remains below 0.005mm. Comprehensive metallurgical expertise is non-negotiable.
Demand absolute transparency from your partner. Require detailed inspection reporting for every roll. They must provide material traceability for new replacements, including heat treatment charts. Pre-grind and post-grind NDT documentation proves that they removed all fatigue and cracks. Never accept a roll without a certified inspection report.
Establish clear communication protocols regarding minimum diameter guidelines. Your supplier must know your exact scrap thresholds. They should alert you immediately if a required grind will push a roll below this limit. This prevents you from paying for grinding on a roll you can no longer use.
Ensure proper handling protocols during transit. Newly ground or replacement rolls are highly susceptible to environmental damage. Require strict rust-prevention packaging. Use VCI (Volatile Corrosion Inhibitor) paper and heavy-duty moisture barriers. Ensure mechanical protection for the roll barrel and necks to prevent impact damage during shipping. Improperly stored rolls will develop pitting rust, ruining the precise surface finish before they ever enter the mill.
Audit your current roll inventory immediately to identify rolls approaching their minimum scrap diameter.
Implement a standardized NDT and bearing clearance inspection routine after every roll change.
Establish a strict tracking system for roll tonnage and diameter reduction to predict replacement cycles accurately.
Consult with a certified rolling mill roll supplier to evaluate material upgrades for your most demanding mill stands.
A: The number of regrinds depends entirely on the depth of damage removed during each cycle and the roll's initial hardened depth. A roll can be reground dozens of times as long as its diameter remains above the mill's minimum scrap limit and the surface hardness meets specifications.
A: The minimum scrap diameter is a hard physical limit dictated by the specific mill stand's hydraulic cylinders, screw-down mechanisms, and chock dimensions. Once a roll falls below this diameter, the mill can no longer close the roll gap sufficiently to process the steel strip.
A: Work roll grinding focuses on restoring exact surface finishes and complex crown profiles to control strip shape. Backup roll maintenance focuses primarily on removing deep subsurface fatigue and Hertzian contact stresses to prevent massive internal spalling under heavy rolling loads.
A: Thermal damage results from rapid heating and cooling cycles during rolling. Intense friction generates heat, while emulsion sprays cool the roll. Insufficient lubrication, blocked cooling nozzles, or sudden mill stops cause severe thermal shock, leading to surface micro-cracking known as fire cracks.
A: A pristine roll barrel is useless if the peripheral mechanics fail. Excessive bearing clearances cause severe vibration and chatter marks on the strip. If the roll necks are worn beyond tolerance and cannot securely hold the bearings, the entire roll must be replaced.
A: Technicians use eddy current testing to detect surface and near-subsurface micro-cracks. Ultrasonic testing (UT) is used to probe the deep core for internal voids or structural cracks. Continuous hardness testing (Shore C or Leeb) verifies the integrity of the remaining hardened layer.
