In heavy-duty metal forming, roll failure triggers catastrophic line downtime, compromises surface finishes, and creates severe production bottlenecks. Mill operators and procurement engineers constantly balance initial tooling investments against long-term operational reliability. Selecting an inadequate metallurgical foundation leads to premature wear, thermal cracking, or sudden roll breakage under peak reduction loads. Resolving these operational bottlenecks requires an objective, engineering-led evaluation of roll metallurgy. The physical demands placed on roughing and finishing stands dictate that material selection cannot rely on availability alone. This guide breaks down the microstructural differences and mechanical trade-offs to determine the optimal specification for high-stress rolling environments. We evaluate the exact performance metrics needed to keep your mill running efficiently, maintain strict gauge tolerances, and prevent catastrophic equipment damage during aggressive rolling campaigns.
Structural Integrity: Forged rolls eliminate internal voids and align grain structures, providing superior impact toughness and resistance to catastrophic failure compared to cast alternatives.
Application Specificity: While alloyed cast iron rolls offer cost-effective wear resistance for medium-load or specific cold rolling applications, heavy-duty stands mandate the yield strength of forged steel.
Lifecycle Economics: The higher initial procurement cost of a forged steel rolling mill roll is typically offset by extended campaign lengths, highly predictable re-grinding cycles, fewer roll changes, and reduced risk of unplanned downtime.
Customization: Partnering with a specialized manufacturer allows for precise alloy selection and heat treatment, critical for optimizing both work and backup rolls for specific mill configurations.
Rolling mills subject tooling to immense physical punishment. The primary forces include extreme contact pressures at the roll bite, cyclic bending fatigue across the roll barrel, and severe thermal gradients. During hot rolling, thermal shock occurs rapidly. The roll surface contacts metal exceeding 1,000°C and immediately passes through high-pressure water cooling sprays. This continuous, aggressive heating and cooling cycle demands a material capable of resisting surface network cracking. Simultaneously, the roll neck experiences massive torsional shear stress driven by the mill motors. You need exceptional core strength to prevent twisting or shearing at the drive end.
Contact pressures in the roll bite frequently exceed 1500 MPa during heavy reduction drafts. This localized stress attempts to push the roll material past its yield point. If the material yields, the roll surface deforms plastically, leaving a permanent indentation that transfers directly onto the rolled strip. Mill operators must specify materials that maintain high hardness at elevated operating temperatures to combat this continuous compressive assault.
Geometric factors dictate mill design and material selection. Roll diameter directly influences bending stiffness. Larger diameters require more stretching of the outside curve during deflection. This geometric reality demands materials with exceptional yield strength to maintain precise gauge accuracy across the strip width. If the roll bends even slightly under load, the strip crown goes out of tolerance. You end up with rejected coils and wasted material.
The moment of inertia dictates that as bending forces increase, the material's resistance to elastic deformation becomes the primary defense against profile errors. A heavy duty rolling mill roll must possess a high modulus of elasticity. When rolling high-strength low-alloy (HSLA) steels or advanced high-strength steels (AHSS), the separation forces push the mill housings and rolls to their absolute mechanical limits. Any lack of stiffness in the roll body translates directly to edge drop or center buckle on the finished strip.
The non-negotiable metallurgical requirements are stringent. High surface hardness prevents rapid abrasive wear and maintains the surface finish. Indentation resistance stops strip defects, scale, or foreign debris from imprinting on the roll face. Deep hardenability ensures the roll maintains its mechanical properties after multiple grinding campaigns. This allows the mill to utilize the roll down to its minimum scrap diameter without losing performance.
Core toughness remains equally critical. The center of the roll must remain ductile enough to absorb shock loads without propagating brittle fractures. When a cobble occurs and the strip jams in the mill, the kinetic energy transfers directly into the roll necks and barrel. A brittle core will snap, while a tough, ductile core will absorb the impact, saving the roll and potentially the mill bearings from total destruction.
Common roll failures dictate the strict material selection process. Thermal cracking, often called fire cracking, leads to severe spalling if cracks propagate sub-surface and link together. Abrasive wear changes the roll profile, leading to tracking issues and uneven gauge. Peeling resistance is critical in cold mills where high contact pressures cause the hardened surface layer to delaminate.
Catastrophic neck breakage stops the entire mill instantly. This failure requires hours of extraction, realignment, and potential damage to the mill housings and chocks. Sub-surface fatigue represents another hidden danger. Millions of rotational cycles cause microscopic inclusions to initiate cracks deep below the hardened case. These cracks grow silently until a massive section of the roll barrel spalls off during operation.
Cast rolls begin as molten metal poured directly into a mold shaped like the final product. Foundries utilize centrifugal casting techniques to create a hard outer shell with a softer core, or static casting for uniform compositions. Common variations include alloyed cast iron, nodular iron, and high-chrome cast iron. The casting process allows for complex initial shapes and the introduction of high volumes of primary carbides. These carbides provide excellent baseline wear resistance.
During centrifugal casting, the mold spins at high speeds. The denser, alloy-rich metal pushes to the outside, forming the working shell. Once the shell solidifies, the foundry pours a softer, ductile iron into the center to form the core and necks. This bi-metallic approach attempts to solve the hardness versus toughness dilemma, but the metallurgical bond between the shell and core remains a potential weak point under extreme shear stress.
These rolls excel in specific operational scenarios. They generally offer shorter delivery lead times due to the elimination of the forging process. In medium-load environments or older mill configurations with lower reduction drafts, cast rolls provide high production efficiency. For finishing stands where the primary goal is maintaining a specific surface texture rather than executing massive thickness reductions, the carbide-rich structure of cast iron performs adequately.
Indefinite chill (IC) cast iron rolls, for example, contain a mix of graphite and carbides. The graphite acts as a natural solid lubricant during hot rolling, preventing the strip from sticking to the roll face. This specific microstructural advantage makes IC cast rolls a standard choice for the final finishing stands in hot strip mills.
Specific alloyed cast irons achieve a functional balance of hardness and toughness. Nodular cast iron contains graphite in spherical nodules rather than flakes. These nodules interrupt crack propagation and improve ductility compared to standard grey iron. This makes specific cast variants highly suitable for certain cold rolling applications where contact pressures remain relatively stable and impact shocks are minimal.
High-chrome (Hi-Cr) cast iron rolls push the hardness limit further. By adding 15% to 20% chromium, the microstructure develops massive M7C3 carbides. These carbides are exceptionally hard and resist abrasive wear better than almost any other conventional roll material. However, this extreme hardness comes at the direct expense of impact toughness.
Casting carries inherent metallurgical realities that limit performance under extreme stress. As molten metal solidifies, it shrinks. This creates the potential for internal porosity, micro-voids, and shrinkage cavities. Cast microstructures feature dendritic growth. This grain structure inherently possesses lower impact toughness and unpredictable fatigue limits.
The reduced bending stiffness limits their viability in high-reduction roughing stands. Under extreme torque or sudden cobbles, a cast roll is far more susceptible to sudden, brittle failure. It will snap at the neck or shatter across the barrel. Furthermore, centerline porosity in statically cast rolls creates a weak axis right down the center of the roll, exactly where torsional shear stresses concentrate during heavy drafts.
The forging process fundamentally alters the steel's internal structure. Heavy hydraulic presses apply thousands of tons of force to the heated steel ingot. This intense physical consolidation refines the coarse grain structure left over from casting. The forging reduction ratio physically crushes and welds shut any internal voids or microporosity. The grain flow aligns continuously with the geometry of the roll, maximizing directional strength and eliminating the weak points inherent in cast dendritic structures.
Modern roll forging utilizes presses ranging from 4,000 to 10,000 tons of capacity. The ingot undergoes multiple open-die forging passes. The operator draws out the barrel and steps down the necks. This mechanical working breaks up carbide networks and homogenizes the alloy distribution. The resulting steel matrix is fully dense, completely eliminating the shrinkage cavities that plague cast alternatives.
The resulting mechanical benefits of a forged steel rolling mill roll are substantial. Superior yield strength prevents plastic deformation under massive reduction loads. Exceptional fatigue resistance allows the roll to endure millions of rotational bending cycles without initiating sub-surface cracks. Forged steel withstands extreme rolling forces, sudden temperature spikes, and high-torque mill starts that would easily shatter a cast equivalent.
When rolling hard alloys like stainless steel or titanium, the separation forces require maximum roll rigidity. Forged steel provides a higher and more consistent modulus of elasticity than cast iron. This rigidity ensures the roll bite remains parallel, preventing the strip from wandering off-center and maintaining strict gauge tolerances from the operator side to the drive side of the mill.
Forged steel responds exceptionally well to advanced, highly controlled heat treatments. Techniques such as dual-frequency induction hardening create a deep, uniform hardened layer on the barrel surface. This process transforms the surface microstructure into hard, wear-resistant martensite. Meanwhile, the core remains a tough, ductile structure, typically bainite or tempered martensite.
This differential microstructure provides the surface hardness needed for strip quality while maintaining a shock-absorbing core. Progressive induction hardening allows metallurgists to dial in the exact depth of the hardened case. For a large roughing roll, this case depth might exceed 50mm, providing a massive amount of usable diameter for future grinding campaigns.
Lifecycle extension drives the engineering specification. Forged steel rolls undergo multiple re-hardening and re-grinding cycles. Because the material is fully dense and homogeneous, machining does not uncover hidden porosity or casting defects. Maintenance teams reliably predict stock removal rates. This structural integrity significantly extends operational lifespan.
When a forged roll reaches its minimum hardened diameter, the roll shop can send it back for re-hardening. The homogeneous forged structure handles the thermal shock of a second or third quench-and-temper cycle without cracking. This ability to recycle the roll body drastically reduces long-term tooling consumption and keeps inventory costs predictable.
Comparing wear profiles reveals distinct operational differences. High-chrome cast iron alloys offer excellent wear resistance for finishing stands due to the massive volume of primary carbides. However, these carbides make the roll brittle. Forged steel provides a tunable balance of hardness and toughness for high-impact zones. Through precise alloying with chromium, molybdenum, and vanadium, forged rolls achieve exceptional wear resistance without sacrificing ductility.
In a direct comparison of forged vs cast rolling mill rolls, the wear mechanism differs. Cast rolls resist wear through hard carbide particles embedded in a softer matrix. Forged rolls resist wear through a uniform, highly tempered martensitic structure. When a cobble scratches the roll, the forged steel tends to plow and deform locally, whereas the cast iron tends to micro-spall, releasing hard carbide particles into the roll bite that further damage the strip.
Structural integrity heavily favors forging. Bending stiffness and resistance to stretching on the outside curve dictate mill setup parameters. Forged rolls are mandatory when preventing roll deflection is critical to product gauge accuracy. A rigid roll bite ensures uniform strip thickness from edge to edge. Cast rolls exhibit lower elastic modulus characteristics under extreme stress, leading to greater deflection and compromised strip profiles.
Consider the torsional load on the roll neck during a heavy draft. The drive spindle transmits massive torque. A cast roll neck, with its inherent micro-porosity and lower yield strength, acts as a mechanical fuse. It will shear under peak torque. A forged roll neck, with its aligned grain flow, transmits that torque directly into the roll bite without yielding.
Maintenance predictability separates the two materials in the roll shop. Re-machining a forged roll is a highly stable process. The homogeneous structure yields consistent grinding wheel wear and predictable surface finishes. Roll shop operators can program CNC grinders with exact feed rates and wheel speeds, knowing the material will respond uniformly.
Conversely, cast rolls frequently reveal sub-surface porosity or hard spots during routine machining. Discovering a void during a finish grind forces the maintenance team to scrap the entire roll prematurely. Hard spots in cast iron rapidly degrade grinding wheels, forcing frequent wheel dressing and slowing down the roll turnaround time in the shop.
Evaluating long-term performance requires looking past the initial acquisition. The extended lifespan, reduced maintenance interventions, superior re-grinding yield, and reliable performance metrics justify the specification of forged steel in roughing and intermediate stands. Fewer unplanned roll changes mean higher mill availability.
The elimination of catastrophic roll breakages protects the mill housings and bearings from secondary damage. When a cast roll shatters, the shockwave destroys the multi-row cylindrical roller bearings in the chocks. Replacing those bearings often costs more than the roll itself. Forged rolls act as an insurance policy against this catastrophic secondary damage.
Performance Parameter | Forged Steel Rolls | Cast Iron/Steel Rolls |
|---|---|---|
Internal Microstructure | Fully dense, consolidated, aligned grain flow | Dendritic, high potential for micro-porosity |
Impact Toughness | Exceptional; absorbs heavy shock loads and cobbles | Low to Moderate; highly susceptible to brittle failure |
Bending Stiffness (Modulus) | High; maintains strict gauge accuracy under load | Lower; prone to deflection under peak separation forces |
Machinability & Grinding | Predictable, uniform stock removal, consistent wheel wear | Variable; risk of uncovering sub-surface voids or hard spots |
Thermal Shock Resistance | High; resists deep fire cracking during hot rolling | Moderate; prone to network cracking and subsequent spalling |
Primary Mill Application | Roughing stands, heavy reduction, backup rolls | Finishing stands, specific skin-pass cold rolling niches |
Re-hardening Capability | Excellent; supports multiple quench and temper cycles | Poor; thermal cycling often initiates internal cracking |

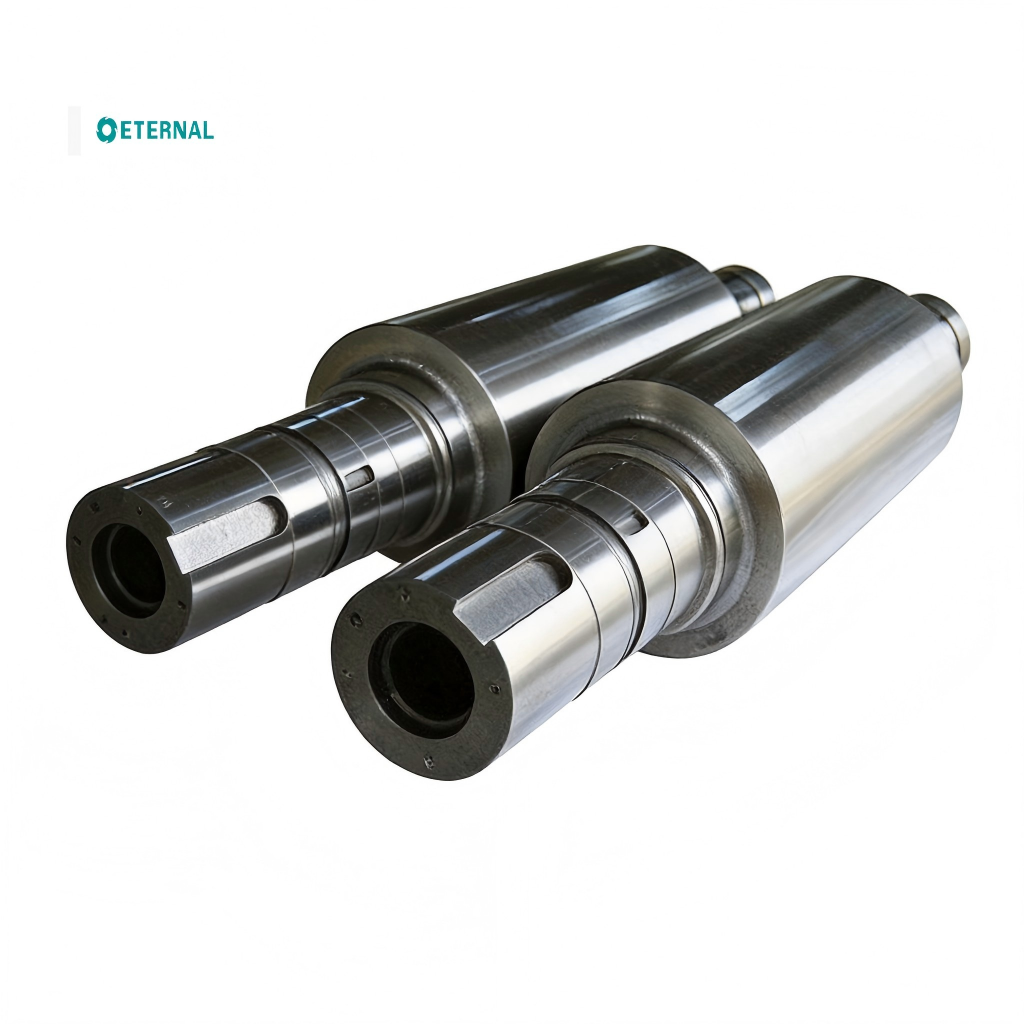

Specifying a forged work roll requires strict attention to contact zone mechanics. These rolls touch the metal strip directly, executing the actual thickness reduction. Surface finish retention is paramount to prevent transferring defects to the final product. Thermal fatigue resistance prevents fire cracking during hot rolling. The absolute necessity of forged steel in roughing stands cannot be overstated. These stands take the most massive reduction drafts, generating extreme torque that easily shears a cast roll neck.
For cold rolling applications, work rolls demand extreme surface hardness, often exceeding 90 Shore C. Alloys like MC3 (a 3% chromium forged steel) provide the deep hardenability required. The forged structure ensures that as the roll wears and undergoes grinding, the surface hardness remains consistent down to the scrap diameter, maintaining the required Ra (roughness average) on the rolled strip.
Backup rolls serve a fundamentally different function within a 4-high or 6-high mill configuration. They do not contact the strip. Instead, they distribute extreme loads and prevent the smaller work rolls from deflecting. The massive bending forces transferred through the mill housing require the absolute structural homogeneity of a forged backup roll to prevent catastrophic core failure.
If a backup roll deflects or deforms plastically, the work roll bends, and the strip loses its profile entirely. This results in wavy edges or center buckle. Backup rolls endure intense Hertzian contact stresses where they meet the work roll. Alloys like 70Cr3Mo provide the necessary yield strength and sub-surface fatigue resistance to prevent spalling under these continuous, high-pressure line loads.
Despite the dominance of forged steel in heavy applications, cast rolls remain the standard in specific operational niches. Certain cold rolling applications utilize them effectively where loads are highly controlled. Finishing stands, where surface hardness and peeling resistance take precedence over impact toughness, rely on high-chrome cast iron.
In these specific zones, the heavy carbide network provides a specialized wear profile that suits the final passes of the rolling schedule. Skin pass mills, which impart a final surface texture and minor elongation to the strip, often use cast rolls because the reduction forces are minimal and the primary goal is texture transfer rather than bulk deformation.
Evaluating a forged roll manufacturer requires strict engineering due diligence. Assess their in-house forging capacity, specifically the tonnage of their hydraulic presses, to ensure adequate reduction ratios for large diameter rolls. Verify their heat treatment precision, looking for advanced induction or spray quenching capabilities. Review their machining tolerances and historical defect rates.
A capable manufacturer controls the entire metallurgical process. This starts with vacuum degassing (VD) or electroslag remelting (ESR) of the molten steel to remove hydrogen and non-metallic inclusions. Clean steel is the foundation of a reliable roll. If the manufacturer buys commercial-grade ingots without secondary refining, the final forged roll will still contain microscopic stress risers that lead to premature fatigue failure.
Rigorous non-destructive testing (NDT) is mandatory prior to installation. Ultrasonic testing (UT), following standards like ASTM A388, scans for internal flaws. This ensures the forging process successfully closed all voids deep within the core. Magnetic particle inspection (MPI) detects microscopic surface cracks before they propagate under rolling stress.
Comprehensive hardness mapping across the entire barrel length ensures uniform wear characteristics. Technicians use Equotip or Shore C testers to verify the hardness profile. A drop in hardness at the barrel edges indicates improper quenching and will lead to uneven strip profiles during operation. The manufacturer must provide full NDT certification with every roll delivered.
Specifying a custom forged steel roll involves precise engineering collaboration. Variables include exact alloy selection, balancing carbon, chromium, molybdenum, and nickel for the specific mill environment. You must define dimensional tolerances for bearing fits on the roll journals down to the micron level to prevent bearing creep.
Engineers must match the roll's hardening depth to the mill's standard grinding practices. If your roll shop removes 0.5mm per campaign, a 20mm case depth provides 40 usable campaigns. You must also specify the exact heat treatment curves tailored to the mill's cooling configuration. A roll designed for high-pressure water cooling requires a different tempering cycle than a roll operating in a dry cold mill environment.
Review current failure logs to identify specific mill stands experiencing premature spalling, excessive deflection, or neck breakage.
Audit roll shop grinding data to track how frequently cast rolls are scrapped prematurely due to sub-surface porosity or hard spots.
Collaborate with metallurgical engineers to specify exact hardening depths and alloy compositions for your next backup roll procurement.
Transition high-reduction roughing and intermediate stands to forged steel to immediately improve gauge consistency and eliminate catastrophic breakage risks.
Implement strict ultrasonic and magnetic particle testing requirements for all incoming roll deliveries to verify internal structural integrity.
A: Thermal cracking occurs due to rapid heating and cooling cycles. As the roll contacts hot metal, the surface expands. Cooling sprays immediately contract it. This cyclic thermal stress creates microscopic network cracks that lead to severe spalling if not ground out properly during routine maintenance.
A: Backup rolls endure massive bending forces to keep the work roll flat under load. High yield strength prevents the backup roll from permanently deforming. This rigidity is essential for maintaining accurate strip gauge, preventing edge drop, and ensuring uniform thickness across the strip width.
A: It is highly discouraged for heavy-duty applications. Roughing stands take the largest reduction drafts, generating extreme torque and impact loads. Cast rolls lack the internal structural homogeneity and impact toughness required, making them highly susceptible to catastrophic neck breakage.
A: Heavy hydraulic presses apply immense pressure to the heated steel ingot. This physical force crushes and welds shut microscopic shrinkage cavities and gas voids formed during the initial casting process. The result is a fully dense, homogeneous internal structure with aligned grain flow.
A: Induction hardening allows manufacturers to create a very hard, wear-resistant surface layer while keeping the core of the roll ductile. This differential microstructure provides excellent resistance to surface indentation while allowing the roll to absorb heavy impact shocks without snapping.
A: Roll manufacturers and mill operators use Ultrasonic Testing (UT) to detect internal flaws. High-frequency sound waves travel through the steel and reflect off any voids, inclusions, or cracks. This non-destructive testing ensures the roll is structurally sound before it enters the mill.
